Truck Crane Cylinder for Opening Rack Support

In the high-stakes world of heavy lifting, the initial deployment of outrigger beams is the most critical step toward ensuring operational safety. The cylinder for opening rack support is the primary kinetic driver that facilitates the horizontal extension of the stabilizer racks, effectively widening the footprint of the crane chassis. This initial expansion allows the vehicle to transition from a mobile transport unit to a rigid, unyielding platform capable of hoisting monumental payloads. Any failure in this phase could lead to catastrophic structural instability. Our design focuses on high-pressure endurance and smooth, judder-free extension, utilizing proprietary internal damping technology to manage the sudden inertia shifts during rack opening. By integrating advanced metallurgical science with decades of field-tested engineering, we provide actuators that stand up to the rigorous demands of modern infrastructure projects.

Kinetics of Rack Stabilization

The operating principle of the cylinder for opening rack support involves a high-pressure fluid transfer through a double-acting circuit. When the operator initiates the "outrigger extend" command, hydraulic oil enters the cap end, driving the massive piston rod horizontally. This motion must overcome significant static friction between the steel beams. To manage this, we utilize low-friction PTFE-bronze guide bands that prevent metal-to-metal contact between the piston and the barrel, even under severe side-load conditions. The use of premium materials like 27SiMn ensures that the barrel wall can thin down to save weight while maintaining a safety factor of 4:1. This balance of strength and agility is what differentiates our high-pressure hydraulic rack support cylinder from the competition.

Urban High-Rise Infrastructure

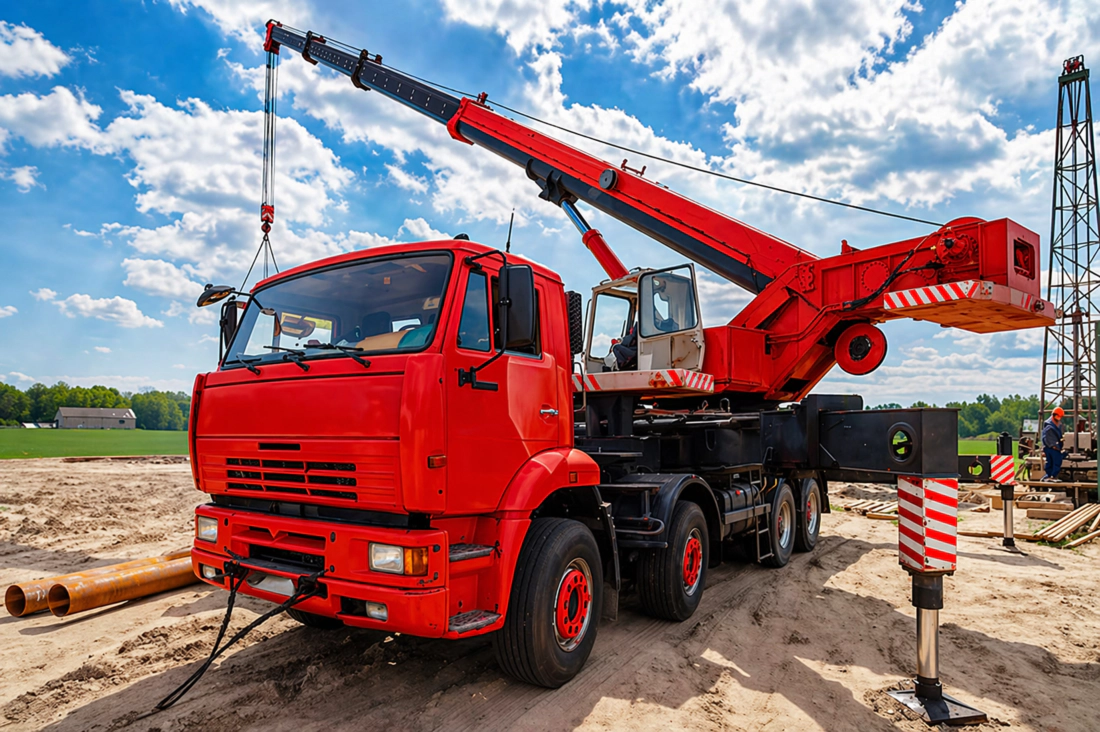

In densely populated urban centers, space is at a premium. Our custom outrigger beam cylinders allow for rapid, precise deployment on narrow streets. The reliability of our cylinder for opening rack support means urban contractors can trust their base stability while working alongside high-traffic zones and pedestrian walkways.

Heavy Industrial Maintenance

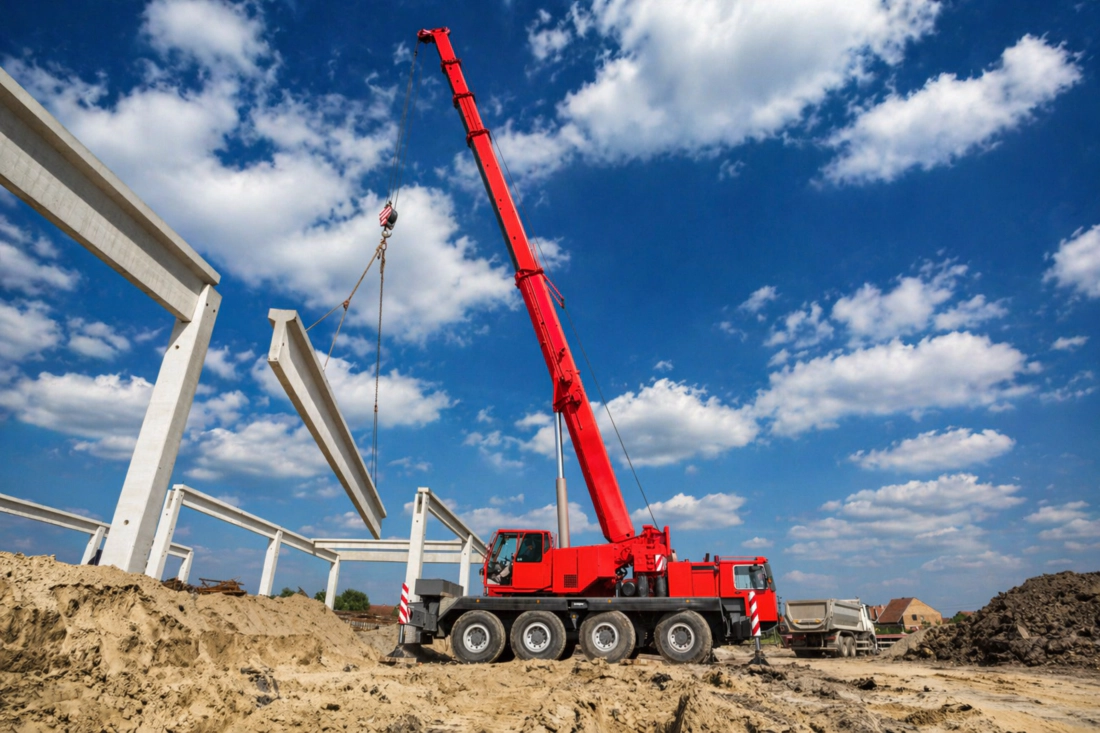

Refineries and petrochemical plants present highly corrosive environments. Our hard-chrome and nickel-plated cylinders resist acidic fumes and salt air, ensuring that a stabilizer cylinder doesn't fail when moving multi-ton reactor modules during scheduled shutdowns where every minute costs thousands of dollars.

Major Bridge & Energy Projects

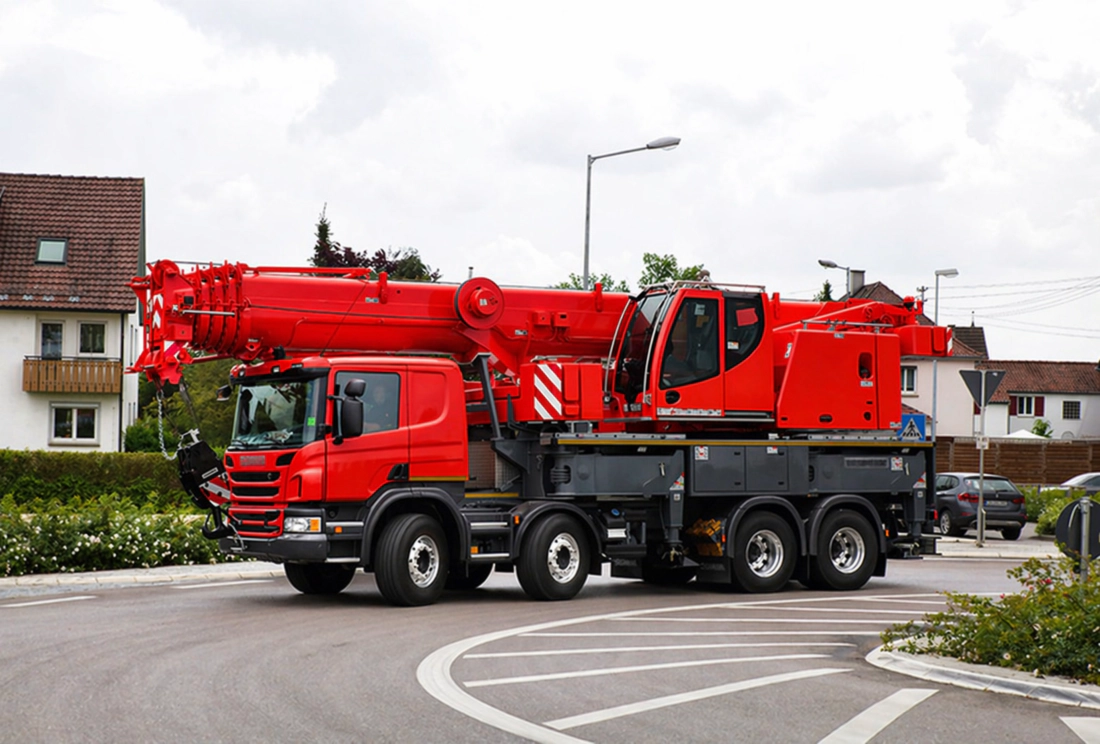

Building trans-continental bridges or erecting wind turbines requires immense reach. These cranes rely on their stabilizer and luffing cylinders to manage fluctuating wind loads. Our custom hydraulic actuator design ensures that the outrigger racks are the strongest link in the structural chain.

State-of-the-Art Manufacturing & Customization

Our facility in China serves as a global hub for hydraulic innovation. We don't just "make" cylinders; we craft them using Industry 4.0 standards. Our paint lines utilize loading and unloading robots for paint lines to ensure an automotive-grade finish that resists environmental degradation for decades. Every cylinder for opening rack support is subjected to a 100% functional test, including a 1.5x pressure hold and ultrasonic weld testing.

We pride ourselves on our custom hydraulic actuator design services. Whether you require integrated linear position sensors for automated outrigger leveling, non-standard mounting trunnions, or specialized fluid porting to fit a legacy crane chassis, our engineers are ready to deliver. Our localized supply chain in China allows us to source the highest quality raw materials while keeping the cost of opening rack support cylinder competitive without compromising on EEAT-standard quality.
