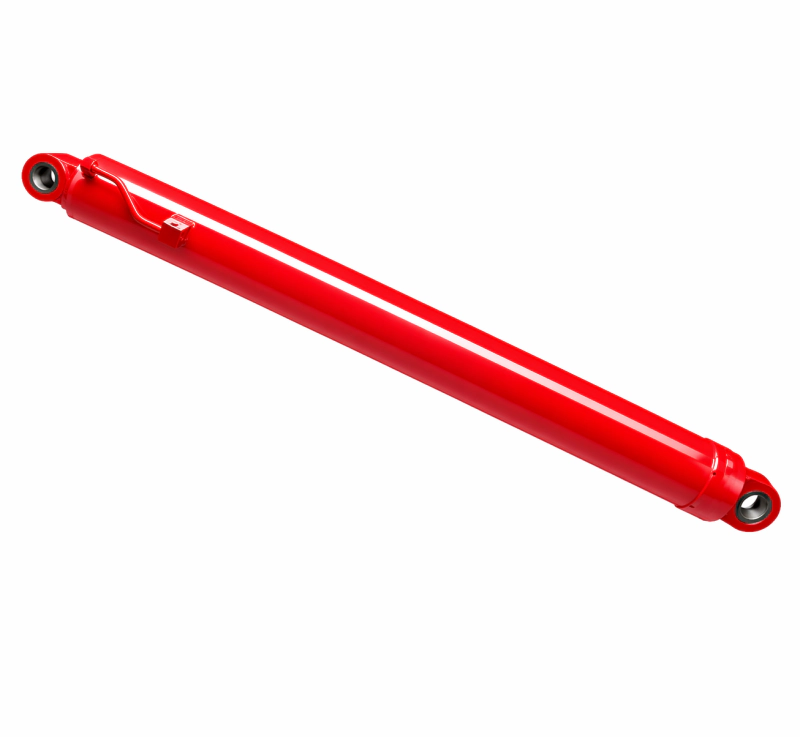

Truck Crane Cylinder Main Boom Angle Cylinder

Kinematics of the Luffing Mechanism

The operational physics of the main boom angle cylinder demand a highly sophisticated integration of hydraulic valving and high-yield metallurgy. During the elevation of a heavy payload, the hydraulic pump forces high-viscosity oil into the piston cavity, generating the thrust required to pivot the massive steel boom upward. However, the most critical phase occurs during static holding and controlled descent. To guarantee absolute positional stability, our cylinders integrate direct-flange counterbalance valves. These pilot-operated load-holding valves mechanically lock the hydraulic fluid within the cylinder chamber. Should a primary hydraulic feed line rupture anywhere on the truck crane chassis, these integrated valves prevent the boom from crashing downward, serving as the ultimate fail-safe for load retention.

Sustaining these monumental hydraulic pressures necessitates an architectural foundation built upon extreme material density. Standard industrial cylinder barrels are highly susceptible to radial expansion (ballooning) when subjected to the intense shock loads generated by a swinging crane payload. We forge our luffing cylinder barrels exclusively from premium 27SiMn high-tensile seamless steel, providing exceptional elasticity and burst resistance. The piston rod, which must survive intense buckling forces and abrasive environmental exposure, is machined from 42CrMo forged alloy steel. We subject this rod to a meticulous induction hardening protocol, followed by a dual-layer hard chrome plating process. This creates an impenetrable surface hardness exceeding HRC 58, actively repelling airborne silica, moisture, and chemical corrosives, thereby preserving the internal sealing matrix for thousands of operational hours.

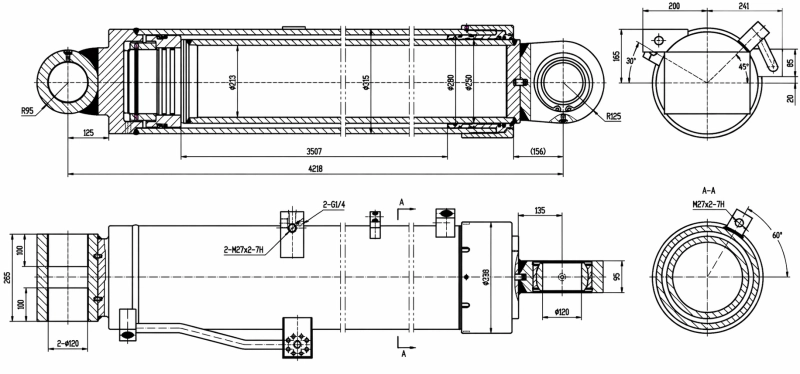

Schematic detailing the precise mounting geometries and integrated counterbalance valve porting.

Architectural Superiority

Evaluating the specific engineering blueprint of our truck crane boom cylinder reveals several proprietary enhancements designed to neutralize common field failures. Truck crane booms are frequently subjected to intense lateral wind shear and asymmetric payload swinging. These events transfer massive radial side-loads directly into the extended cylinder rod. To combat this, we integrate ultra-wide Polyoxymethylene (POM) guide bands within the cylinder head and on the piston. These high-density bearing surfaces actively absorb and distribute the radial deflection, strictly preventing the steel rod from establishing destructive metal-to-metal contact with the internal barrel wall, thereby preserving the internal micro-finish.

Furthermore, violent mechanical shock during boom deceleration severely damages crane structures. We engineer an advanced progressive hydraulic cushioning system directly into the cylinder end caps. When the heavy boom approaches its maximum lower or upper angle limit, an internal plunger restricts the hydraulic fluid outflow through precision-machined micro-orifices. This fluid restriction smoothly converts the kinetic energy of the massive moving boom into thermal energy, ensuring a vibration-free, perfectly controlled deceleration. This critical feature exponentially extends the fatigue life of the entire truck crane chassis and boom pivot pins.

The Thermal Degradation Crisis

A premier international heavy lifting consortium based in Dubai, UAE, was executing critical module installations for a massive solar desalination plant. Their fleet of 150-ton commercial truck cranes was operating in brutal conditions, with ambient temperatures routinely exceeding 48°C (118°F) and highly abrasive desert sandstorms occurring weekly. The extreme heat caused the standard polyurethane seals in their OEM luffing cylinders to soften and extrude under pressure. Concurrently, micro-fine silica sand bypassed the factory wiper seals, inflicting severe longitudinal scoring on the piston rods. This combination led to dangerous boom settling under load, forcing the immediate grounding of the fleet and causing catastrophic project delays.

The Engineered Resolution

The consortium rapidly mobilized our engineering division. We analyzed the thermal failure points and manufactured a custom fleet-wide replacement of the main boom angle cylinder. We overhauled the internal architecture, upgrading the primary sealing matrix to aerospace-grade, high-temperature fluorocarbon elastomers that remain rigid and extrusion-resistant even when hydraulic oil temperatures exceed 110°C. To combat the severe silica abrasion, we specified a proprietary dual-layer hard chrome plating process, doubling the rod's surface defense. The retrofitted truck cranes resumed operations immediately, completing the remaining 14 months of the desalination project with absolute zero hydraulic drift, saving the contractor millions in potential delay penalties.

Advanced Manufacturing Architecture

Forging critical hydraulic components that safeguard multimillion-dollar equipment and human life requires a production ecosystem built upon absolute technological precision. Functioning as the premier hydraulic cylinder manufacturer China relies on for heavy industry, our manufacturing complex is a showcase of Industry 4.0 capability. Multi-axis CNC turning centers sculpt solid high-tensile steel billets into perfectly concentric pistons and end caps, maintaining tolerances within strict micrometers. To guarantee that the mounting trunnions can survive the multi-directional shear forces generated by a pivoting crane boom, we deploy fully automated robotic welding cells. This eliminates human variability and ensures flawless weld penetration and zero porosity.

Our core engineering philosophy centers on aggressive, highly responsive product customization. We recognize that heavy fleet managers and OEMs constantly face unique operational demands that standard catalog actuators cannot resolve. Our dedicated R&D division employs dynamic 3D CAD modeling and advanced Finite Element Analysis (FEA) to simulate complex load scenarios prior to physical production. Whether your application requires specialized cold-weather elastomeric seals for Arctic operations, unique port configurations to match legacy hydraulic plumbing, or specific stroke lengths for modified booms, we execute your exact requirements flawlessly. Every single cylinder undergoes stringent hydrostatic pressure testing at 150% of its rated operational capacity before global dispatch.
