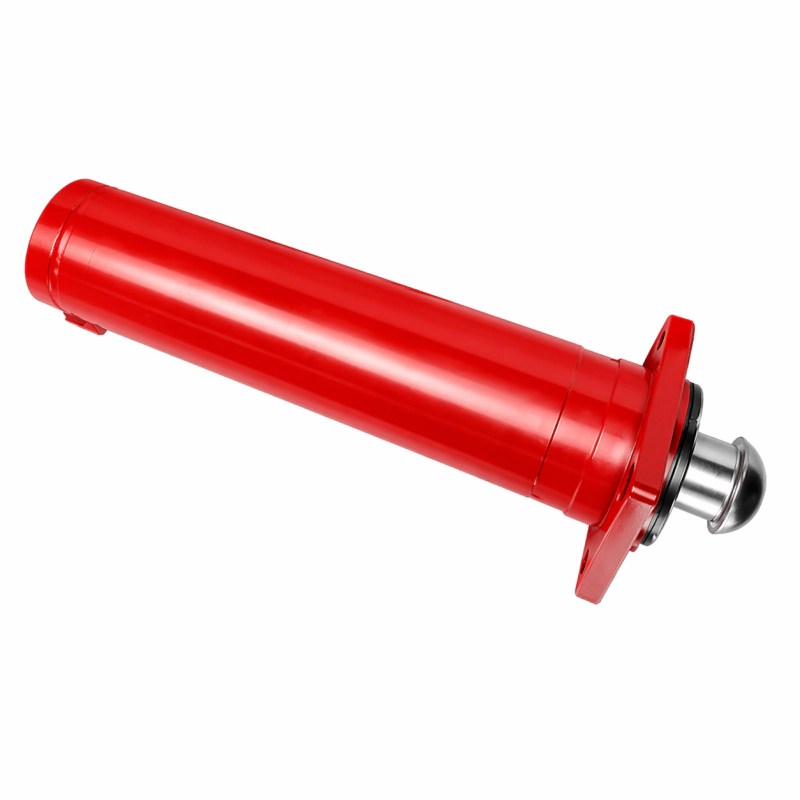

Truck Crane Series Hydraulic Cylinder for Frame Support

Kinematics of Unyielding Support

The mechanical physics governing the cylinder for frame support demand a highly sophisticated equilibrium between vertical thrust generation and absolute static holding capability. During the outrigger deployment phase, pressurized hydraulic fluid floods the cylinder bore, driving the massive steel piston rod downward. Once the crane is elevated and leveled, the cylinder transitions into its most critical operational state: the static hold. To guarantee absolute positional stability, our cylinders integrate direct-flange pilot-operated check valves (POCV). These heavy-duty holding valves mechanically trap the hydraulic fluid within the pressure chamber. Should a primary hydraulic feed line rupture anywhere on the truck crane chassis, these integrated valves instantly seal the circuit, preventing the support leg from collapsing and serving as the ultimate fail-safe for load retention.

Sustaining these monumental hydraulic pressures necessitates an architectural foundation built upon extreme material density. Standard industrial cylinder barrels are susceptible to micro-expansion when subjected to the intense shock loads generated by a swinging crane payload. We forge our main cylinder barrels exclusively from premium 27SiMn high-tensile seamless steel, providing exceptional elasticity and burst resistance. The piston rod, which acts as the physical pillar supporting the crane, is machined from 42CrMo forged alloy steel. We subject this critical component to a meticulous induction hardening protocol, followed by a dual-layer hard chrome plating process. This creates an impenetrable surface hardness exceeding HRC 58, actively repelling airborne silica, moisture, and chemical corrosives, thereby preserving the internal sealing matrix for thousands of operational hours.

Schematic detailing the precise mounting geometries, trunnion dimensions, and integrated holding valve porting.

Architectural Superiority

Evaluating the specific engineering blueprint of our truck crane cylinder reveals several proprietary enhancements deliberately designed to neutralize common field failures. The vertical deployment of outrigger jacks on uneven terrain inherently introduces severe lateral bending moments into the cylinder rod. To aggressively combat this radial deflection, we integrate ultra-wide Polyoxymethylene (POM) guide bands within the cylinder head and along the internal piston. These high-density bearing surfaces actively absorb and distribute the lateral load, strictly preventing the chrome rod from establishing destructive metal-to-metal contact with the internal barrel wall, preserving the internal micro-finish and preventing catastrophic rod buckling.

Contamination ingress is the primary catalyst for premature hydraulic failure in mobile lifting equipment. Because frame support cylinders are positioned vertically and close to the ground, they are constantly bombarded by abrasive mud, silica dust, and corrosive ice-melt chemicals during transit. We engineer a proprietary, steel-cased double-lip polyurethane wiper seal directly into the cylinder gland. During the retraction phase, this aggressive scraper system forcibly shears dried concrete, mud, and ice off the retracting chrome rod, ensuring that environmental abrasives never breach the internal hydraulic circuit, thereby exponentially increasing the mean time between failures (MTBF).

The High-Heat Abrasive Operational Crisis

A prominent heavy lifting consortium was executing critical infrastructure development for a massive iron ore extraction facility in the Pilbara region of Western Australia. Their fleet of 150-ton commercial truck cranes operated in punishing outback conditions, characterized by ambient temperatures exceeding 45°C (113°F) and relentless, highly abrasive red silica dust. The OEM frame support cylinders began failing rapidly; the extreme heat caused the standard polyurethane seals to soften and extrude, while the fine iron dust bypassed the factory wiper seals, inflicting deep longitudinal scoring on the vertical piston rods. This contamination caused severe internal leakage, leading to hazardous chassis settling during critical lifts and forcing immediate grounding of the fleet.

The Engineered Resolution

The consortium rapidly mobilized our engineering division to architect a permanent solution. We analyzed the environmental failure points and manufactured a custom fleet-wide replacement of the cylinder for frame support. We overhauled the internal sealing architecture, upgrading the primary matrix to high-temperature fluorocarbon (FKM) elastomers, completely immune to thermal extrusion. To combat the aggressive iron ore grit, we specified a proprietary dual-scraper system paired with an ultra-thick 50μm hard chrome plating process, exponentially increasing the rod's surface defense. The retrofitted truck cranes resumed operations immediately, completing the remaining 24 months of the mining project with absolutely zero hydraulic drift, saving the contractor millions in potential downtime penalties.

Advanced Manufacturing Architecture

Forging critical hydraulic components that safeguard multimillion-dollar equipment and human life requires a production ecosystem built upon absolute technological precision. Functioning as the premier hydraulic cylinder manufacturer China relies on for heavy industry, our manufacturing complex is a showcase of Industry 4.0 capability. Multi-axis CNC turning centers sculpt solid high-tensile steel billets into perfectly concentric pistons and end caps, maintaining tolerances within strict micrometers. To guarantee that the structural integrity can survive the multi-directional compressive forces generated by chassis stabilization, we deploy fully automated robotic welding cells. This eliminates human variability and ensures flawless weld penetration and zero porosity.

Our core engineering philosophy centers on aggressive, highly responsive product customization. We recognize that heavy fleet managers and OEMs constantly face unique operational demands that standard catalog actuators cannot resolve. Our dedicated R&D division employs dynamic 3D CAD modeling and advanced Finite Element Analysis (FEA) to simulate complex load scenarios prior to physical production. Whether your application requires specialized high-temperature elastomeric seals for desert operations, unique integrated valve blocks to match legacy hydraulic plumbing, or specific stroke lengths for modified outrigger beams, we execute your exact requirements flawlessly. Every single cylinder undergoes stringent hydrostatic pressure testing at 150% of its rated operational capacity before global dispatch.
