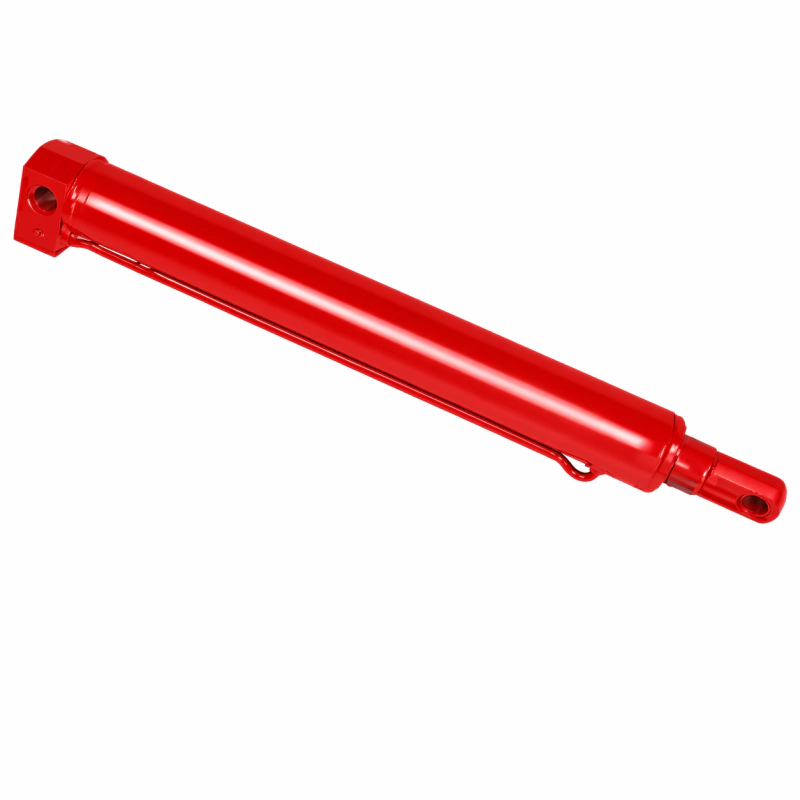

Truck Crane Series Front Cylinder for Frame Support
Ever Power designs ultra-durable front cylinders for frame support. Expert China manufacturing for heavy-duty truck crane stabilization. Achieve precision and safety. Get a custom quote today!
Advancing the architectural integrity of heavy-lift operations through high-precision hydraulic stabilization.
Modern commercial lifting maneuvers demand more than just raw power; they require an unyielding foundation. The front cylinder for frame support serves as the primary kinetic link between a truck crane's high-tensile chassis and the ground. This specialized truck crane hydraulic cylinder is tasked with the critical role of horizontal outrigger extension and initial stabilization, ensuring that the heavy machinery's center of gravity remains securely managed even when the boom reaches its maximum radius. In the realm of severe-duty hydraulics, the performance of these actuators directly dictates the safety of multi-million dollar infrastructure projects. Our design philosophy integrates 18 years of field-tested precision to ensure zero-drift performance and extreme durability.
Immersive Factory Experience:
Technical Architecture & Precision Parameters
Our outrigger stabilizer cylinder units are built to withstand crushing static loads and high-intensity cycle rates. By utilizing advanced metallurgy, including induction-hardened 42CrMo rods and 27SiMn seamless steel barrels, we achieve a superior power-to-weight ratio that enhances vehicle fuel efficiency while maintaining structural dominance.
| Technical Specification | Performance Metric |
|---|---|
| Max Working Pressure | Up to 35 MPa (350 Bar) |
| Barrel Material | High-yield 27SiMn Seamless Steel |
| Piston Rod Coating | Hard Chrome Plating (thickness > 30um) |
| Sealing Architecture | High-Temp Polyurethane / PTFE Seals |
| Internal Valving | Integrated Pilot-Operated Check Valves |
| Temperature Range | -40 to +110 Degrees Celsius |
Core Engineering Advantages
Zero-Drift Load Holding
Every front cylinder for frame support features integrated hydraulic locks. This ensures that once the chassis is leveled, the cylinder maintains its position indefinitely, even in the event of a high-pressure hose rupture.
Corrosion Resistance
Equipped with a dual-stage hard chrome surface, our piston rods are impervious to road salt, grit, and moisture. This is vital for mobile cranes operating in coastal or sub-zero environments.
Micron-Level Tolerance
Our automated CNC honing lines ensure an internal surface finish of Ra 0.2, drastically reducing seal friction and extending the maintenance lifecycle of your stabilizer hydraulic cylinder.
Technical Blueprint Reference:
Versatile Field Deployment
Urban High-Rise Infrastructure
Operating in congested metropolitan zones requires precision stabilizers that can deploy asymmetrically. Our precision frame support actuator China provides the granular control needed to level cranes on narrow city streets with varying elevations.
Energy & Industrial Maintenance
From refinery maintenance to wind turbine installation, the demand for static load holding is absolute. Our high-pressure outrigger extension cylinder ensures that massive lifting components remain perfectly stationary for hours under heavy tension.
China's Premier Custom Engineering Hub
Achieving world-class reliability requires an uncompromising production environment. Based in our advanced facility in China, we leverage Industry 4.0 automation, including loading and unloading robots for paint lines and multi-axis CNC machining centers. This minimizes human error and guarantees that every front cylinder for frame support meets a tolerance margin of +/- 0.02mm.
We specialize in high-intensity product customization. Whether your crane requires non-standard stroke lengths, specialized spherical bearing ends, or unique mounting trunnions, our R&D engineers utilize FEA (Finite Element Analysis) to simulate stress loads before production starts. This bespoke capability makes us the go-to China hydraulic cylinder supplier for global OEMs and equipment repair specialists.
Global Success Story: Port of Jebel Ali Logistics
In the aggressive heat of the Middle East, a major port logistics company faced frequent seal failures on their mobile crane fleet due to sand ingress and extreme temperature fluctuations. After replacing their OEM components with our custom heavy-duty hydraulic cylinder for truck crane chassis, they reported a 45% reduction in unplanned maintenance. Our team designed a specialized Viton sealing matrix and an aggressive dual-wiper system that prevented micro-abrasives from entering the hydraulic circuit. After 24 months of continuous operation in high-salinity desert air, the cylinders maintained 100% pressure integrity.
"The durability in high heat is unlike anything we've used before. These China-made cylinders are superior to our original European parts."
— Operations Manager, UAE Logistics Group
"Their ability to customize the mounting dimensions allowed for a perfect 'plug-and-play' replacement. Highly recommended for fleet maintenance."
— Chief Engineer, Australian Infrastructure Co.
"Fast lead times and impeccable documentation. Finding a reliable supplier like Ever Power was a game changer for our bridge projects."
— Project Director, South American Construction
Expert Insights: Stabilizer Cylinder FAQ
How much does a custom front cylinder for frame support cost for a 100-ton truck crane project?
The cost of truck crane frame support cylinder units depends on the required bore diameter, stroke length, and material grade. For a heavy-duty 100-ton capacity crane, high-yield 27SiMn steel is recommended. Sourcing directly from an established China hydraulic cylinder supplier can reduce procurement costs by 30-40% compared to local retailers while offering superior custom design options.
Which materials are best for outrigger stabilizer cylinders operating in extreme high-corrosion coastal environments?
For coastal infrastructure, we utilize nickel-chrome dual-plating or HVOF coatings on the rods of our outrigger stabilizer cylinder products. This provides over 1,000 hours of salt spray resistance. Coupling these with high-temp viton seals ensures long-term operational safety in humid and saline atmospheres commonly found in energy infrastructure sites.
Where can I find a reliable China outrigger cylinder manufacturer that offers technical support and global shipping?
Ever Power is a premier custom hydraulic cylinder design China specialist with extensive global logistics experience. We provide full technical documentation, 2D/3D drawings, and 100% factory pressure testing for all truck crane hydraulic cylinder orders, ensuring seamless integration and reliability for international crane fleet operators.
What are the mechanical signs that my truck crane stabilizer cylinder needs immediate replacement to avoid failure?
Look for 'drift' (where the outrigger slowly retracts under load), visible fluid weeping at the rod end, or deep scoring on the chrome surface. These indicate seal failure or rod bending. Replacing your mobile crane stabilization parts early prevents catastrophic structural failure during a lift and lowers long-term maintenance costs.
Global Delivery | ISO 9001 Certified | Bespoke Design
