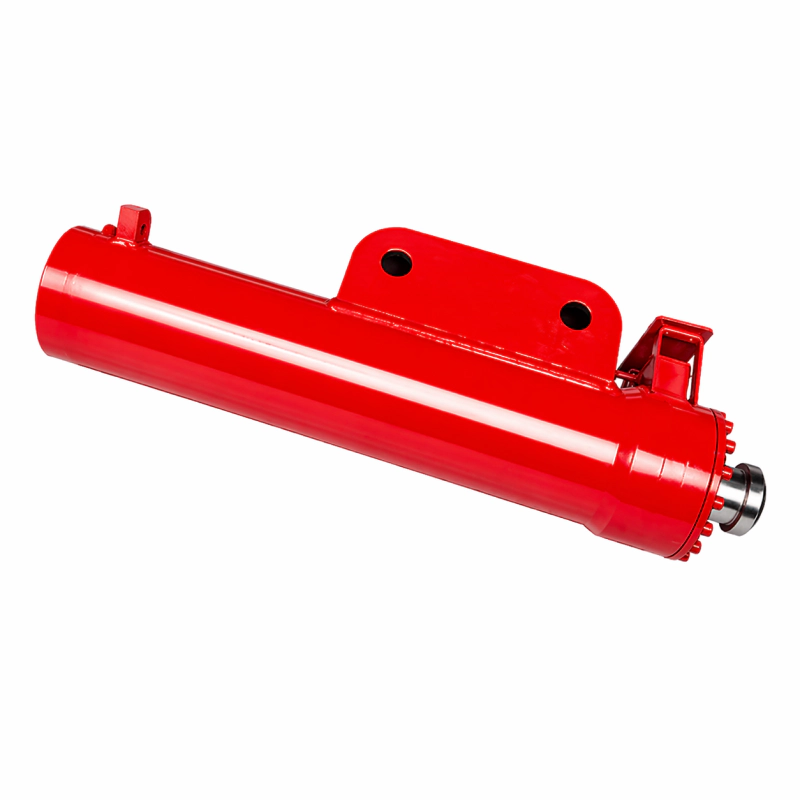

Truck Crane Cylinder for Frame Support

Fluid Dynamics of Rigid Stabilization

The mechanical execution of a truck crane deployment relies heavily on the specific valving integrated directly into the cylinder for frame support. When extending the outriggers, high-pressure hydraulic oil enters the bore, generating massive downward thrust to elevate the multi-ton vehicle. Once the desired elevation is achieved, the cylinder must transition into an absolute static hold. To guarantee this unyielding state, our cylinders are engineered with integrated pilot-operated check valves (POCV) flanged directly to the cylinder barrel. Should a primary hydraulic hose rupture or a central pump fail during a lift, these internal holding valves mechanically lock the fluid within the cylinder chamber. This fail-safe architecture prevents the frame support from collapsing, entirely eliminating the risk of the truck crane capsizing under load.

Sustaining these intense hydraulic pressures requires a metallurgical foundation of exceptional density. Standard carbon steel barrels are prone to microscopic expansion (ballooning) under extreme pressure spikes, which instantly compromises the sealing matrix. We forge every heavy-duty truck crane cylinder from premium 27SiMn seamless steel. This specialized alloy provides an extraordinarily high yield strength, ensuring the internal bore remains perfectly cylindrical even when subjected to shock loads exceeding 350 Bar. The piston rod, the element subjected to the most severe environmental abuse and buckling forces, is machined from 42CrMo forged steel. It undergoes a deep induction hardening process followed by a dual-pass hard chrome plating, achieving a surface hardness of HRC 58+. This surface tribology actively repels abrasive silica dust, road salts, and moisture, ensuring zero friction damage to the internal wiper seals.

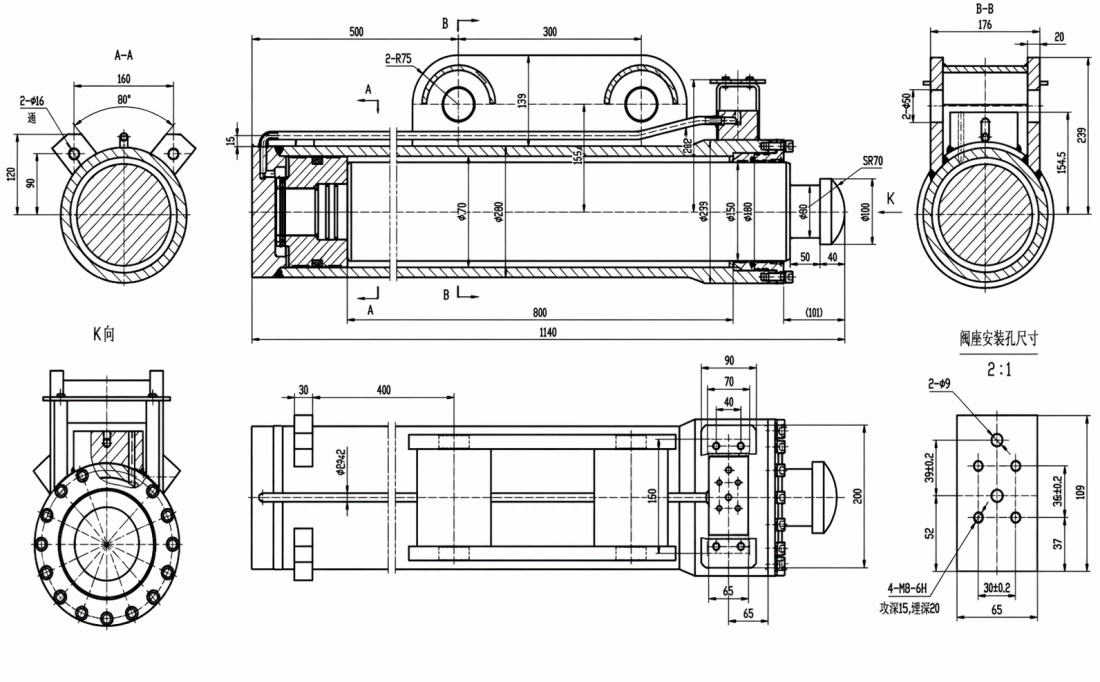

Schematic highlighting precise mounting geometries and integrated holding valve ports.

Architectural Superiority

Analyzing the explicit blueprint of our cylinder for frame support illuminates several proprietary design elements formulated to combat field failure. The internal rod guide rings are crafted from high-density Polyoxymethylene (POM). When a truck crane lifts a load asymmetrically, immense lateral side-loads are transferred directly through the outrigger beam into the cylinder. These wide-stance POM bands actively absorb and distribute this radial deflection, preventing the steel piston from establishing destructive metal-to-metal contact with the inner barrel wall.

Contamination ingress remains the primary catalyst for premature hydraulic failure. Construction sites blanket the outrigger cylinders in abrasive particulate. We integrate a proprietary, steel-cased double-lip wiper seal into the cylinder head. During the retraction phase, this aggressive scraper system forcibly shears mud, dried concrete, and ice off the chrome rod, ensuring the internal primary pressure seals remain perfectly isolated from environmental abrasives. This focus on defensive tribology exponentially increases the service lifecycle of the entire stabilization system.

The Environmental Challenge in Saudi Arabia

A premier heavy logistics and equipment rental corporation operating out of Riyadh, Saudi Arabia, faced a critical operational bottleneck. Their fleet of 120-ton commercial truck cranes was executing specialized lifts for a new desalination plant. Ambient temperatures routinely spiked to 50°C (122°F), accompanied by aggressive, high-velocity sandstorms. The OEM frame support cylinders began failing rapidly; the standard polyurethane seals softened and extruded under the immense heat and pressure, while the micro-fine silica sand bypassed the factory wiper seals, inflicting deep longitudinal scoring on the piston rods. This resulted in hazardous chassis settling under load, forcing immediate grounding of the fleet.

The Engineered Resolution

The corporation engaged our engineering division to architect a permanent solution. We rapidly prototyped and manufactured a custom fleet-wide replacement of the cylinder for frame support. We upgraded the entire sealing package to aerospace-grade, high-temperature fluorocarbon (Viton) elastomers, immune to thermal extrusion. To combat the silica abrasion, we specified a proprietary dual-layer hard chrome plating process, doubling the rod's surface defense. Furthermore, we integrated specialized spherical bearing mounts to absorb the extreme chassis torsion experienced on the uneven desert bedrock. The retrofitted truck cranes resumed operations, logging over 8,000 hours of zero-fault lifting, slashing their annual hydraulic maintenance budget by 42%.

Advanced Manufacturing Architecture

Forging components that protect multimillion-dollar assets and human life requires a production ecosystem built on absolute precision. Serving as the hydraulic cylinder manufacturer China trusts for heavy industry, our manufacturing floor is an exhibition of Industry 4.0 capability. Multi-axis CNC turning centers sculpt the solid steel billets into perfectly concentric pistons and end caps, holding tolerances to within micrometers. To ensure the mounting trunnions can survive the multi-directional shear forces generated by a pivoting crane, we employ fully automated robotic welding cells, eliminating human error and ensuring flawless weld penetration.

Our core engineering philosophy revolves around aggressive product customization. We understand that OEMs and heavy fleet managers constantly encounter unique operational demands that standard catalog components simply cannot fulfill. Our dedicated engineering division utilizes dynamic 3D CAD modeling and advanced Finite Element Analysis (FEA) to simulate complex load scenarios before initiating physical production. Whether your application requires integrated linear position sensors for automated outrigger deployment, specialized low-temperature seals for Arctic operation, or unique port configurations to match legacy plumbing, we execute your exact specifications flawlessly. Every cylinder undergoes stringent hydrostatic pressure testing at 150% of its rated capacity prior to global dispatch.
