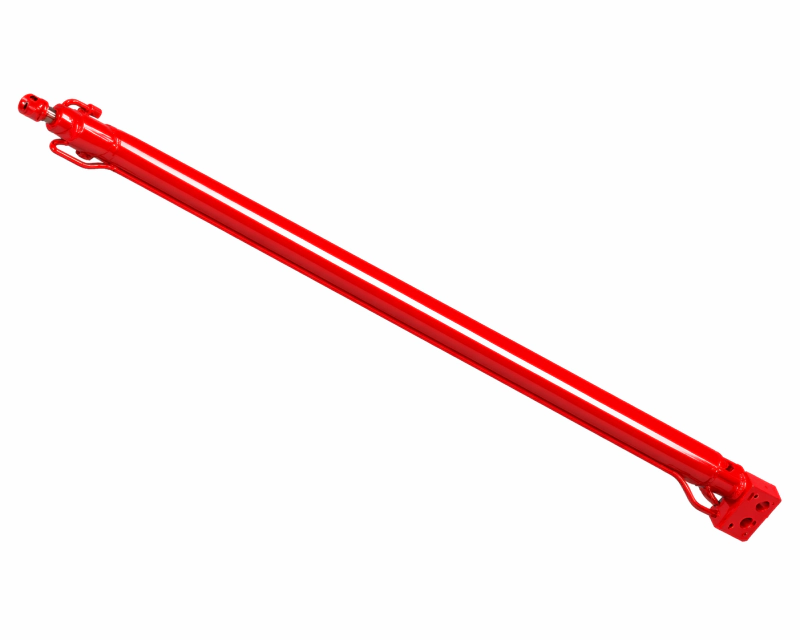

Truck Crane Cylinder Front Cylinder for Opening Rack Support

Kinematics of the Opening Rack Mechanism

The operational physics governing the front cylinder for opening rack support demand a highly sophisticated equilibrium between hydraulic thrust and structural rigidity. When the operator engages the outrigger deployment sequence, pressurized hydraulic fluid enters the cylinder bore, generating the necessary horizontal force to slide the heavy steel support rack out of its chassis housing. This movement must be impeccably smooth; any hydraulic juddering or stick-slip phenomenon (stiction) caused by inferior internal seals will send damaging vibrations through the outrigger housing, potentially misaligning the support beams. To guarantee flawlessly smooth extension, we engineer our cylinders with ultra-low friction Polytetrafluoroethylene (PTFE) glide rings and advanced elastomeric sealing matrices that maintain consistent lubrication across the entire stroke length.

Sustaining these operational parameters over thousands of deployment cycles requires an architectural foundation built upon exceptional material density. We forge our main cylinder barrels exclusively from premium 27SiMn high-tensile seamless steel, a specialized alloy that provides extraordinary burst resistance and prevents internal bore deformation under high-pressure spikes. The piston rod, which is relentlessly exposed to road debris, silica dust, and corrosive moisture, is machined from 42CrMo forged alloy steel. We subject this critical component to a meticulous induction hardening protocol, followed immediately by a dual-layer hard chrome plating process. This creates an impenetrable surface hardness exceeding HRC 58, actively repelling environmental abrasives and preserving the integrity of the internal wiper seals for prolonged operational lifespans.

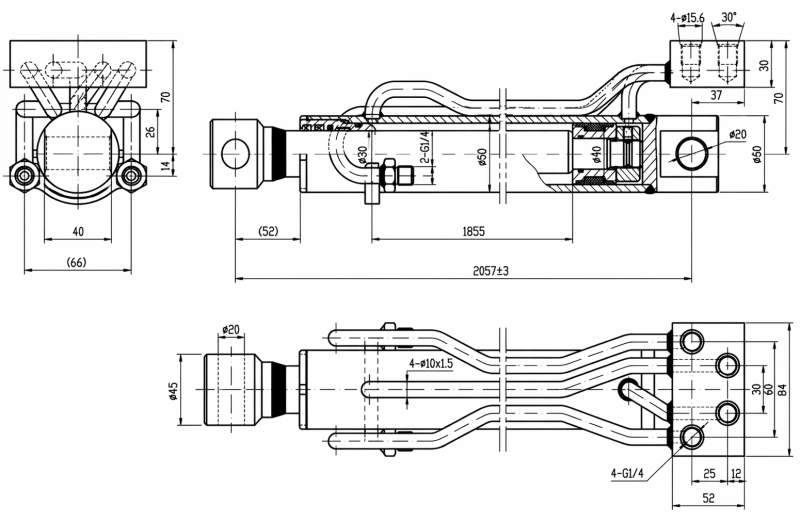

Schematic detailing the precise mounting geometries and structural rod dimensions for horizontal rack deployment.

Architectural Superiority

Evaluating the specific engineering blueprint of our truck crane front cylinder reveals several proprietary enhancements deliberately designed to neutralize common field failures. The horizontal deployment of a heavy steel rack inherently introduces severe asymmetric loads and radial deflection into the cylinder rod. To aggressively combat this, we integrate ultra-wide Polyoxymethylene (POM) guide bands within the cylinder head and along the piston. These high-density bearing surfaces actively absorb and distribute the lateral deflection, strictly preventing the chrome rod from establishing destructive metal-to-metal contact with the internal barrel wall. This proactive defense preserves the internal micro-finish and drastically extends the MTBF (Mean Time Between Failures) of the entire stabilization system.

Contamination ingress is the primary catalyst for premature hydraulic failure in mobile equipment. Because the front cylinder is positioned low on the truck chassis, it is constantly bombarded by aggressive road spray, abrasive mud, and corrosive ice-melt chemicals during transit. We engineer a proprietary, steel-cased double-lip polyurethane wiper seal directly into the cylinder gland. During the retraction phase, this aggressive scraper system forcibly shears dried concrete, mud, and ice off the retracting chrome rod, ensuring that environmental abrasives never breach the internal hydraulic circuit.

The High-Humidity Operational Crisis

A prominent international heavy lifting consortium was executing critical infrastructure development for a massive elevated rail network in Jakarta, Indonesia. Their fleet of 100-ton commercial truck cranes operated in punishing tropical conditions, characterized by ambient temperatures exceeding 38°C (100°F) and relentless 95% humidity. The OEM front rack deployment cylinders began failing rapidly; the persistent moisture and tropical torrential rains overwhelmed the standard wiper seals, allowing water and grit to breach the hydraulic fluid. This contamination caused severe internal scoring, leading to rack deployment jamming and hazardous delays during the critical stabilization phase before lifting operations.

The Engineered Resolution

The consortium rapidly mobilized our engineering division to architect a permanent solution. We analyzed the environmental failure points and manufactured a custom fleet-wide replacement of the front cylinder for opening rack support. We overhauled the internal sealing architecture, upgrading the primary matrix to high-temperature hydrolysis-resistant polyurethane, completely immune to water-induced degradation. To combat the aggressive grit and rainfall, we specified a proprietary dual-scraper system paired with a thickened hard chrome plating process, exponentially increasing the rod's surface defense. The retrofitted truck cranes resumed operations immediately, completing the remaining 18 months of the rail project with absolutely zero hydraulic jamming, saving the contractor millions in potential delay penalties.

Advanced Manufacturing Architecture

Forging critical hydraulic components that safeguard multimillion-dollar equipment and human life requires a production ecosystem built upon absolute technological precision. Functioning as the premier hydraulic cylinder manufacturer China relies on for heavy industry, our manufacturing complex is a showcase of Industry 4.0 capability. Multi-axis CNC turning centers sculpt solid high-tensile steel billets into perfectly concentric pistons and end caps, maintaining tolerances within strict micrometers. To guarantee that the mounting components can survive the multi-directional shear forces generated by chassis stabilization, we deploy fully automated robotic welding cells. This eliminates human variability and ensures flawless weld penetration and zero porosity.

Our core engineering philosophy centers on aggressive, highly responsive product customization. We recognize that heavy fleet managers and OEMs constantly face unique operational demands that standard catalog actuators cannot resolve. Our dedicated R&D division employs dynamic 3D CAD modeling and advanced Finite Element Analysis (FEA) to simulate complex load scenarios prior to physical production. Whether your application requires specialized cold-weather elastomeric seals for Arctic operations, unique port configurations to match legacy hydraulic plumbing, or specific stroke lengths for modified outrigger beams, we execute your exact requirements flawlessly. Every single cylinder undergoes stringent hydrostatic pressure testing at 150% of its rated operational capacity before global dispatch.
