Lifting hydraulic cylinder
Power your platforms with our safety-critical AWP Lifting Hydraulic Cylinders. As a specialist manufacturer, we build heavy-duty hydraulic cylinders for all major scissor lift and boom lift models, guaranteeing smooth, stable, and reliable operation. Our cylinders feature high-strength steel, precision-honed tubes, and are all integrated with load-holding safety valves for ultimate operator protection. Choose our OEM-quality replacement cylinders for a perfect fit, zero-leak performance, and a long, durable service life.
What are support hydraulic cylinders?
An AWP lifting hydraulic cylinder is a heavy-duty hydraulic actuator that provides the primary power for lifting the main structure and operating platform of the machine.
Unlike the support (outrigger) cylinders used to stabilize the machine, lifting cylinders are designed for dynamic, repetitive motion. They are the "muscles" that actually perform the work of lifting and lowering the load.
On scissor lifts, these are the large, powerful cylinders that push the scissor arm assembly apart, causing the platform to rise and fall vertically.
On boom lifts, this is the "boom lift cylinder," the main cylinder located at the base of the machine that rotates the entire boom assembly upward from its stowed position.
Support Hydraulic Cylinders Technical Parameters
| Item | Specification |
|---|---|
| Function | Implement the upward and downward movements of the scissor fork |
| Cylinder diameter | 55mm-380mm |
| Rod diameter | 40mm-200mm |
| Travel | 280mm -2193mm |
| Maximum pressure | 25MPa |
| Maximum thrust | 2835KN |
Advantages of Lifting Hydraulic Cylinders
• Compact structure, can be installed in a small space;
• Adopting high-strength materials, applying heat treatment, and the welding process to ensure the strength and life of the cylinder;
• Adopt imported seals: NOK, TRELLEBORG, Hallite, Parker, etc. to ensure sealing performance and good interchangeability;
• Surface treatment process is available upon request: dimensional chrome plating, laser cladding, QPQ, high-frequency quenching, blackening, and so on;
• Wide range of working temperature (-40℃～+120℃), and can be customized fora wider range of cylinders according to customer requirements;
• Accessories such as hydraulic locks, explosion-proof valves, tubes, valve blocks, etc. can be matched according to requirements;
• Designed buffer structure, the cylinder runs more smoothly when lifting and lowering;
• Installation interface can be selected: metric, imperial, American, etc., to meet diversified needs;
How Do Lifting Hydraulic Cylinders Work？
- Lifting (Extension): The operator activates the "lift" control. The AWP's hydraulic pump pumps high-pressure oil into the bottom of the lifting cylinder. This pressure acts on the piston face, pushing the piston rod out (extending it) with immense force, thus lifting the boom or scissor arm assembly.
- Lowering (Retraction): The operator activates the "lower" control. No hydraulic oil is pumped in at this point; instead, a valve is opened, allowing the weight of the platform and boom to push the hydraulic oil out of the cylinder.
- Safety Component: This return flow is controlled by a counterbalance valve (or load-holding valve). This valve is crucial:
- It prevents the platform from "free-falling" or descending too quickly. If a hydraulic hose bursts, it will "lock" the cylinder, preventing catastrophic failure and keeping the platform stable.
Applications of Lifting Hydraulic Cylinders?

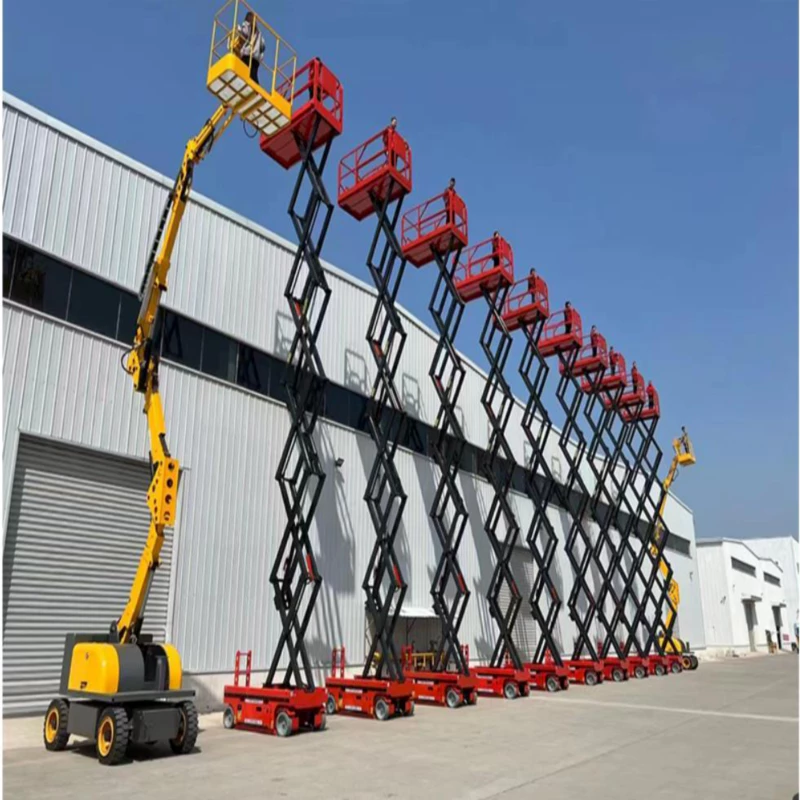

- Scissor lift platforms: These are the main cylinders (usually one or two) located at the base, responsible for the vertical lifting of the platform.
- Boom lift platforms (telescopic and articulated): They are used as "main lift" or "boom lift" cylinders, allowing the entire boom assembly to swing up and down.
- Truck-mounted boom lift platforms: The main cylinder is used to lift the boom from the truck chassis.
- Vertical mast lift platforms: The cylinder is responsible for lifting the mast section.
Lifting Hydraulic Cylinders Manufacturer
Ever Power Hydraulic Cylinder Co., Ltd., established in 2006 and located in Hangzhou, is one of China’s leading manufacturers and exporters of hydraulic cylinders. With excellent product quality and superior service, we have earned the trust of customers worldwide.
The company is a national “Level 2 Standardized Safety Production Enterprise,” a national key-supported “High-tech Enterprise,” a Zhejiang Provincial “Invisible Champion Enterprise,” a Ministry of Industry and Information Technology “Specialized and Innovative ‘Little Giant’ Enterprise,” and a Zhejiang Provincial “Future Factory.” It is also China’s largest manufacturing base for forklift hydraulic cylinders and aerial work platform hydraulic cylinders.
Located in Hangzhou, Zhejiang Province, the company covers an area of 103 acres and employs over 400 people. We have established a provincial-level enterprise research institute, a hydraulic product testing laboratory, and a high-tech R&D center, and possess independent intellectual property rights for key equipment. The company has a complete quality assurance system, comprehensive production and testing facilities, and strong technical R&D capabilities. Our products are mainly used in industrial vehicles, construction machinery, aerial work platforms, sanitation machinery, wind power generation, and agricultural machinery. Our products have been awarded the “Zhejiang Manufacturing” premium product title.
In the future, the company will dedicate itself to building a brand-new “Future Factory” that is technologically advanced, of superior quality, automated, intelligent, customized, and networked. We will win the trust of our customers through continuous innovation and are committed to providing users with more reasonable, safer, more efficient, and more reliable hydraulic transmission solutions.
