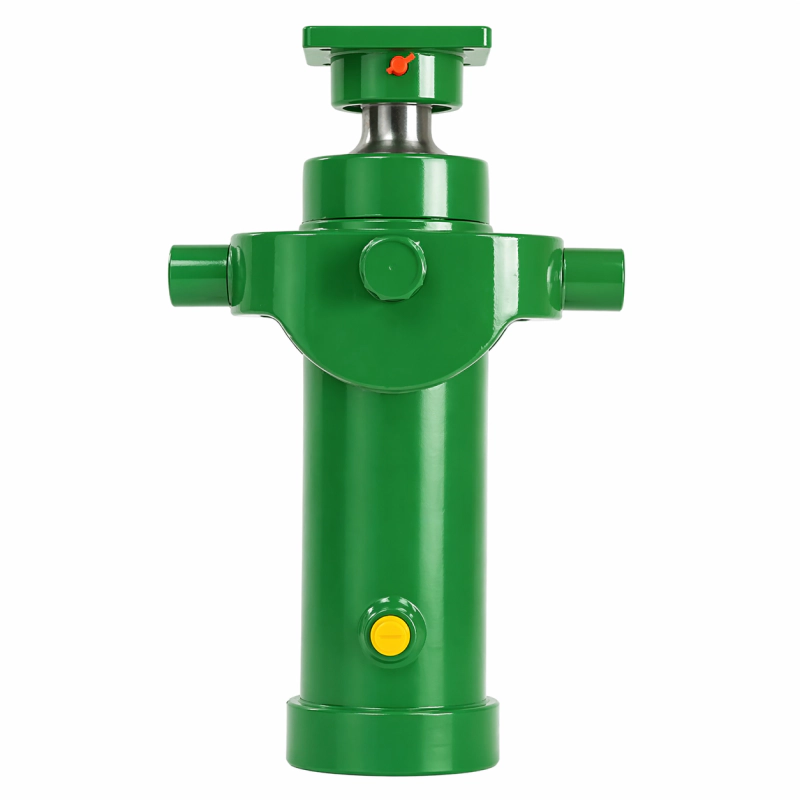

In the demanding landscape of heavy-duty material handling and construction, the telescopic cylinder represents the pinnacle of space-efficient linear motion. By utilizing multiple nested stages, these actuators provide an extraordinary stroke length while maintaining a remarkably compact retracted profile. Our engineering philosophy centers on maximizing payload capacity and minimizing downtime, ensuring that every multi-stage hydraulic cylinder we produce meets the rigorous standards of global industrial operations. Whether you are operating dump trucks in mining or sophisticated agricultural machinery, our designs provide the reliability you need.
Welcome to experience our manufacturing excellence firsthand:
Engineering Excellence and Material Integrity
The fundamental operation of a telescopic cylinder relies on the sequential extension of multiple hollow stages, or sleeves, which nest within one another. This design is critical for applications where mounting space is severely restricted but a long reach is required. In a single acting telescopic cylinder, hydraulic fluid extends the stages, while gravity or an external load handles the retraction. Conversely, a double acting telescopic cylinder utilizes hydraulic pressure for both directions, offering superior control and precision in complex industrial movements. The internal fluid dynamics require precise balancing to ensure that the stages extend in the correct order, typically from the largest diameter to the smallest, to maintain structural stability and consistent force output.
Material selection is the cornerstone of our durability. We utilize high-strength 27SiMn seamless steel tubes, which offer exceptional yield strength and impact resistance. Each sleeve undergoes a rigorous induction hardening process and is finished with a high-micron hard chrome plating. This treatment ensures a surface hardness exceeding HRC 55, providing an impenetrable barrier against corrosion and abrasive wear in harsh environments like mining or waste management. Our sealing systems feature high-performance polyurethane and PTFE guide rings, designed to withstand peak pressures without leakage. As a leading hydraulic cylinder manufacturer China, we combine advanced metallurgy with precision CNC machining to deliver products that redefine longevity.
Technical Specifications & Performance Metrics
Our standard range of multi-stage hydraulic cylinders is designed to meet a wide variety of operational envelopes. However, we understand that every project has unique requirements. The following table highlights the baseline capabilities of our core product line. For specialized needs, including non-standard stroke lengths or extreme pressure ratings, our engineering team in China is equipped to provide full-scale customization.
| Specification Parameter | Standard Configuration | Advanced/Custom Range |
|---|---|---|
| Number of Stages | 2 - 5 Stages | Up to 7 Stages |
| Maximum Operating Pressure | 210 Bar (3000 PSI) | Up to 350 Bar (5000 PSI) |
| Bore Diameter Range | 80mm to 220mm | Custom up to 400mm |
| Total Stroke Length | Up to 8,000mm | Up to 12,000mm |
| Working Temperature | -20°C to +80°C | -40°C to +120°C (Special Seals) |
| Surface Coating | Hard Chrome Plating (25μm) | Nickel-Chrome or HVOF Spray |
Why Choose Our Telescopic Actuators?
Maximum Reach, Minimal Footprint
Our nested sleeve technology allows for a retracted length that is often less than 25% of the total extended stroke, making it perfect for truck chassis with limited installation space.
Enhanced Corrosion Resistance
With micro-crack chrome plating and specialized salt-spray resistant coatings, our cylinders thrive in coastal, chemical, and humid industrial environments.
High Load-to-Weight Ratio
By utilizing high-tensile 27SiMn steel, we reduce the overall weight of the cylinder without compromising the lifting capacity, improving vehicle fuel efficiency.
Smooth Stage Transition
Our proprietary internal damping and guide system ensures that each stage transitions with minimal friction and noise, preventing shock loads on the machine structure.
Global Application Matrix
The versatility of the telescopic cylinder makes it an indispensable component in modern infrastructure and logistics. In the waste management sector, these cylinders power the compactors and ejector systems of garbage trucks, requiring consistent force across a massive stroke. In the mining industry, a dump truck telescopic cylinder must lift hundreds of tons of ore in steep, uneven terrain, demanding extreme structural rigidity and side-load resistance. Our cylinders are designed to handle these lateral stresses without catastrophic seal failure.
In the agricultural domain, our multi-stage hydraulic cylinder solutions are found in forage harvesters and grain carts, where rapid deployment and reliable retraction are essential for harvesting efficiency. These environments are often plagued by dust and organic debris, which is why our cylinders feature aggressive wiper seals to protect the internal precision components. From combine harvester machinery to industrial material handlers, our technology ensures that your equipment stays operational regardless of the environmental challenges.
China's Premier Custom Hydraulic Engineering
As a dedicated China industrial hydraulic supplier, our facility is equipped with state-of-the-art robotic welding, precision honing machines, and automated testing rigs. We specialize in custom hydraulic cylinder design, offering a collaborative engineering process that begins with understanding your specific load cycles and environmental stressors. Our R&D team utilizes FEA (Finite Element Analysis) to simulate real-world conditions, ensuring every custom hydraulic ram is optimized for weight and strength.
Our commitment to quality control is unwavering. Every telescopic cylinder undergoes 100% pressure testing at 1.5 times its rated capacity before leaving our factory. We provide full traceability for materials and processing, ensuring that our global partners receive products that meet or exceed international safety certifications. Whether you need a small batch of prototypes or high-volume production for OEM equipment, our flexible manufacturing lines are designed to deliver excellence on schedule.
Case Study: Resilience in Deep-Sea Port Logistics
A leading port logistics firm in Singapore recently overhauled their fleet of specialized heavy-duty material handlers. The primary challenge was the premature failure of their existing multi-stage actuators due to the aggressive saline environment and constant high-frequency load cycles. Standard cylinders were exhibiting severe chrome pitting and seal degradation within six months of operation, leading to costly downtime and hydraulic fluid leakage into the harbor.
Our engineering team proposed a bespoke double acting telescopic cylinder solution featuring a dual-layer nickel-chrome plating and a proprietary triple-lip Viton sealing system. By redesigning the internal guide rings to handle higher side-loading during container tilting, we significantly improved the operational stability of the machinery. After 18 months of continuous service in the high-humidity, high-salinity port environment, the client reported zero failures and a 40% reduction in maintenance costs. This success underscores our ability to engineer solutions for the most unforgiving environments on the planet.
"The technical expertise from Ever Power was evident from the first consultation. Their custom telescopic cylinders have drastically improved our fleet's uptime in the harshest marine conditions."
— Marcus L., Operations Director (Singapore Port Authority)
"Reliable, robust, and precisely as specified. As a manufacturer of specialized trailers, finding a supplier in China who understands global B2B quality requirements is crucial for us."
— Dieter K., Chief Engineer (European Logistics Solutions)
"Their ability to customize the retracted length to fit our unique harvester chassis was the deciding factor. The performance of these cylinders in the field is exceptional."
— Sarah J., Procurement Manager (Australian Ag-Tech Corp)
Expert Technical Insights & FAQ
How much does a custom heavy-duty telescopic cylinder cost from a manufacturer in China?
The price of a telescopic cylinder varies significantly based on the number of stages, total stroke length, and the specific material treatments required. Generally, a custom-engineered solution from a reputable China industrial hydraulic supplier offers a 30-50% cost advantage over Western alternatives while maintaining equivalent or superior material quality. For an accurate quote, we recommend providing detailed hydraulic schematics and expected load cycles to our engineering team.
What are the critical maintenance steps for a dump truck telescopic cylinder in mining?
Mining environments are extremely abrasive. To maximize the lifespan of your dump truck telescopic cylinder, it is vital to regularly inspect the wiper seals for debris ingress and ensure the chrome sleeves are free of rock-impact scoring. Using high-quality hydraulic oil with the correct viscosity and ensuring the system is bled of air will prevent cavitation and internal seal damage. We provide detailed maintenance manuals with every buy telescopic cylinder order.
Which industries benefit most from using a double acting telescopic cylinder instead of single acting?
Industries requiring precision positioning, such as specialized material handling, aerospace ground support, and sophisticated agricultural harvesters, benefit most from a double acting telescopic cylinder. Unlike single-acting models that rely on gravity, double-acting versions provide powered retraction, allowing for much faster cycle times and the ability to pull loads as well as push them, which is essential for certain folding machinery designs.
Where can I find a reliable hydraulic cylinder manufacturer China for high-pressure multi-stage rams?
Ever Power is a premier hydraulic cylinder manufacturer China, specializing in high-pressure multi-stage hydraulic cylinder technology. Our factory is located in the industrial heart of China, allowing us to leverage a robust supply chain for specialty steels and advanced sealing components. We offer comprehensive engineering support and global shipping to ensure your operations remain efficient and productive.
Ready to Optimize Your Hydraulic Power?
Partner with a world-class hydraulic cylinder manufacturer China. Let our engineering team design the perfect telescopic solution for your machinery.
