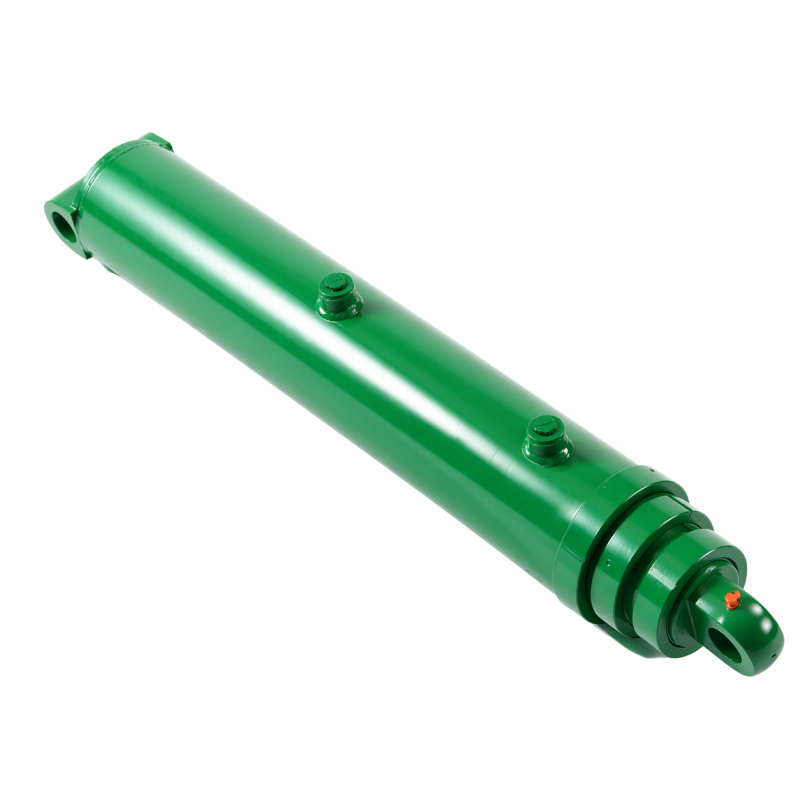

Next-Generation Fluid Power Hyper-Resilient Telescopic Cylinder
Engineer severe-duty telescopic cylinders with our advanced multi-stage technology. Manufactured in China, our custom hydraulic solutions dominate heavy lifting. Get a quote!
Command absolute control over massive payloads with our advanced multi-stage hydraulic architecture. Engineered for extreme topographies and severe industrial environments, our telescopic cylinders deliver an unparalleled stroke-to-retraction ratio. Experience the apex of mechanical leverage, precision-manufactured in our world-class facilities in China to empower the global heavy machinery sector.
Kinetics and Metallurgical Supremacy
The operational genius of a telescopic cylinder lies in its sequential deployment of concentric sleeves. When hydraulic pressure is introduced into the base barrel, the fluid acts upon the largest piston area, initiating the extension of the outermost stage. As each stage reaches its maximum stroke, fluid is seamlessly channeled to the next smaller stage. This dynamic fluid flow dictates that force decreases and velocity increases as the multi-stage hydraulic cylinder extends. Managing this pressure differential requires extraordinary precision in internal porting and valving to prevent jarring transitions that could destabilize high-center-of-gravity payloads, such as fully loaded articulated dump trucks navigating steep inclines.
To sustain these immense internal hoop stresses and external bending moments, standard carbon steel is entirely insufficient. We forge our multi-stage sleeves exclusively from premium 27SiMn alloy steel. This specific metallurgical composition significantly enhances the yield strength and fatigue resistance of the heavy-duty hydraulic ram. Furthermore, our surface tribology engineering involves a proprietary dual-pass hard chrome plating process over an induction-hardened substrate. This creates a highly lubricious, ultra-hard (HRC 58+) outer shell that actively repels abrasive rock dust, silica, and corrosive chemical agents, drastically extending the mean time between failures (MTBF) in the harshest global operating environments.
Seal Matrix Architecture
Contamination is the primary adversary of any fluid power system. We deploy an advanced overlapping chevron V-packing combined with low-friction PTFE energized guide rings. This geometry ensures absolute fluid retention during the violent vibration of off-road transit while the aggressive outer wiper seals obliterate ice, mud, and debris during the retraction phase.
System Capacity and Engineering Parameters
Our baseline models are engineered for massive capability, yet our true strength lies in adaptation. The parameters below outline standard configurations; our engineering team frequently modifies these metrics to accommodate unique mounting geometries or ultra-high pressure closed-loop systems.
| Performance Metric | Standard Specification | Custom Engineering Capability |
|---|---|---|
| Stage Configuration | 2, 3, 4, or 5 Nested Sleeves | Up to 8 Specialized Stages |
| Maximum System Pressure | 16 MPa - 25 MPa (2300 - 3600 PSI) | Surpassing 35 MPa (5000+ PSI) |
| Stroke Length Capacity | 1,200 mm to 8,500 mm | Extended lengths up to 15,000 mm |
| Radial Deflection Tolerance | Standard Rigid Guide Setup | Enhanced Polyoxymethylene (POM) Guides |
| Operational Climate Envelope | -20°C to +85°C | -45°C (Arctic) to +200°C (High-Heat) |
Architectural Superiority
Optimal Stroke Ratio
Space is the ultimate premium in mobile equipment design. Our overlapping stage topology maximizes the extended reach while hyper-compressing the dead length. This allows OEMs to lower the chassis center of gravity, drastically improving vehicle stability during high-speed transit.
Side-Load Mitigation
Uneven ground during tipping operations creates catastrophic lateral forces. We engineer expanded overlap zones between stages and utilize high-density bearing rings that absorb and dissipate these bending moments, preventing rod scoring and structural buckling.
Fluid Flow Efficiency
Cavitation and fluid overheating destroy hydraulic systems. We optimize internal port diameters and valve geometries to ensure laminar fluid flow during rapid stage extension and retraction, reducing thermal buildup and enhancing the efficiency of the primary hydraulic pump.
Dominating Global Industries
The immense power density of the telescopic cylinder renders it indispensable across critical infrastructure and resource extraction sectors. In the realm of heavy logistics, articulated dump trucks (ADTs) rely exclusively on these actuators to elevate colossal payloads of earth and ore. The high-pressure capabilities ensure a rapid dump cycle, allowing mining operations to maintain aggressive productivity targets. Whether operating a single-acting system relying on payload weight for closure, or a double-acting system requiring powered retraction to pull through sticky clay, our cylinders perform flawlessly.
Beyond excavation, our actuators are deeply integrated into the global agricultural ecosystem. Heavy-duty combine harvesters and specialized forage machinery utilize these cylinders to manipulate header heights, fold massive boom arms, and operate grain offloading augers. These articulated dump truck hydraulic systems and agricultural configurations are subjected to relentless vibration, corrosive fertilizers, and extreme dust. Our specialized external coatings and aggressive scraper seals are specifically engineered to conquer these exact biological and abrasive threats.
Precision Forged in China, Deployed Worldwide
True engineering reliability stems from absolute control over the manufacturing process. As a highly reputed hydraulic cylinder supplier China, we operate a vertically integrated production facility that merges heavy industrial capacity with aerospace-level precision. Our factory floors deploy automated skiving and roller burnishing machines, producing internal cylinder finishes with a micro-roughness of less than Ra 0.2. This mirror-like finish exponentially reduces friction on dynamic seals, preventing heat accumulation and catastrophic blowouts.
We do not merely supply off-the-shelf components; we engage in deep, collaborative engineering. Our R&D division utilizes comprehensive Finite Element Analysis (FEA) to simulate complex loading scenarios before a single steel billet is machined. Whether your application requires custom trunnion mounts to fit a legacy chassis, or integrated linear position transducers for automated fleet tracking, our custom multi-stage hydraulic cylinders manufactured in China represent the pinnacle of bespoke industrial design. We invite you to challenge our engineering team with your most demanding fluid power requirements.
Field Proven: Arctic Logging Operations
The Challenge in Northern Canada
A prominent timber harvesting consortium operating in the Canadian Sub-Arctic was experiencing catastrophic failures with their existing log-loader boom cylinders. In winter, temperatures routinely plummeted to -35°C, causing standard nitrile seals to shatter under pressure. Concurrently, the immense weight of old-growth timber induced severe radial deflection, bending the innermost stages of their telescopic rams.
Our Engineered Solution
Our technical task force re-engineered the entire kinetic chain. We implemented aerospace-grade low-temperature fluorocarbon (FKM) seals capable of maintaining elasticity down to -45°C. To combat deflection, we increased the overlap ratio between the second and third stages by 20% and integrated heavy-duty bronze-impregnated guide bands. The newly designed high-pressure telescopic cylinder specifications effectively doubled their operational uptime, entirely eliminating cold-weather seal blowouts and yielding a 40% reduction in annual maintenance expenditures.
"Finding a reliable hydraulic cylinder supplier in China that understands the brutal realities of open-pit mining was difficult. Ever Power delivered a multi-stage solution that easily handles our 80-ton payload cycles without flinching."
— Alejandro M., Mining Fleet Director (Chile)
"The custom engineering process was seamless. They redesigned our articulated dump truck hydraulic systems to feature a shorter retracted length, perfectly solving our spatial constraints."
— Thomas R., OEM Engineering Lead (UK)
"Our agricultural harvesters take a beating from dust and vibration. These telescopic rams feature the best wiper seals we've tested. Zero contamination after two full harvest seasons."
— David S., Agricultural Machinery Manufacturer (USA)
Expert Engineering Insights
What is the estimated cost of replacement telescopic cylinder units for construction equipment?
The cost of replacement telescopic cylinder assemblies varies significantly based on payload requirements, maximum stroke length, and the specific number of expanding stages. Our direct-from-factory pricing model in China ensures you bypass intermediary markups, providing premium heavy-duty actuators at highly competitive rates. We encourage you to submit your existing part dimensions to receive a precise, customized quote.
How do custom multi-stage hydraulic cylinders manufactured in China compare in quality?
Our custom multi-stage hydraulic cylinders manufactured in China operate at the vanguard of global quality standards. By integrating European-imported sealing technologies (such as Hallite), utilizing rigorous ultrasonic non-destructive testing (NDT), and employing high-yield 27SiMn steel, our hydraulic rams consistently match or exceed the operational longevity and safety metrics of top-tier Western brands.
Where can I find a dependable telescopic cylinder manufacturer quote for high-pressure systems?
You can directly secure a comprehensive telescopic cylinder manufacturer quote through our dedicated technical portal. Our engineering specialists analyze your system pressure requirements, fluid dynamics, and environmental variables to provide an accurate proposal, full CAD modeling, and transparent lead times for your high-pressure fluid power projects.
Which oil viscosity is required for articulated dump truck hydraulic systems in cold climates?
For extreme cold weather mining operations, your articulated dump truck hydraulic systems require an ISO VG 15 or VG 22 low-temperature hydraulic fluid to prevent severe cavitation and sluggish stage extension. Coupling this specialized fluid with our custom cold-weather elastomeric seals guarantees smooth kinetic actuation even when ambient temperatures drop below -30°C.
When should a double-acting telescopic cylinder be chosen over a single-acting model?
A double-acting telescopic ram is mandatory when the industrial application requires forced, powered retraction rather than relying on gravity or payload weight. This is critical for horizontal pushing mechanisms, specialized refuse compactors, and automated agricultural booms that must retract quickly regardless of the chassis angle or external resistance.
