Advanced Telescopic Cylinder Solutions: Maximizing Reach, Minimizing Footprint

The Architecture of Multi-Stage Motion: Principles and Materials

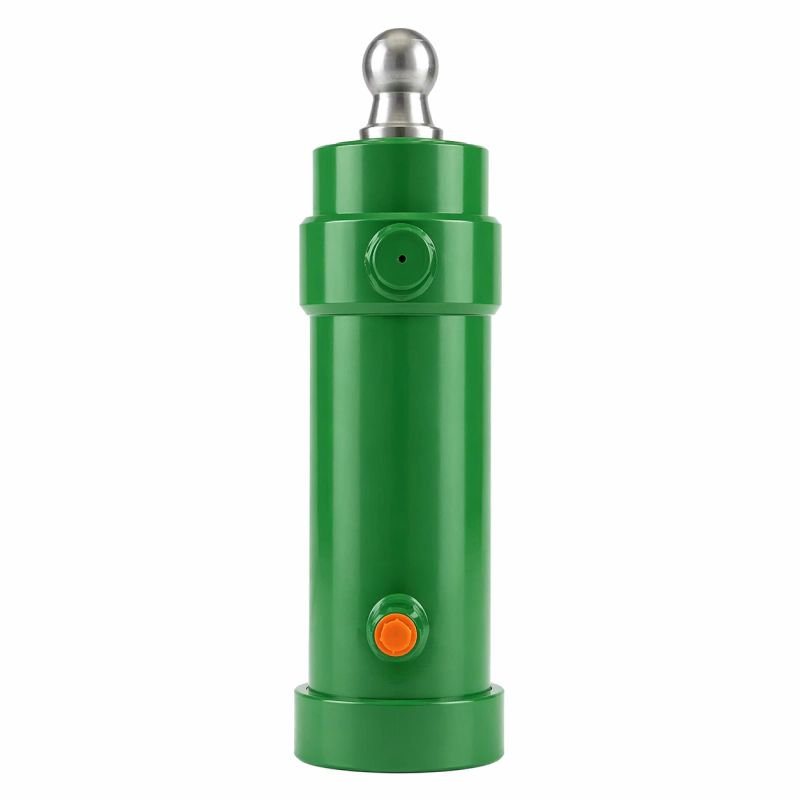

The core functionality of a telescopic cylinder involves a series of nested sleeves, known as stages, which extend sequentially to reach the desired length. In a single acting telescopic hydraulic cylinder for dump truck, hydraulic fluid is used purely for extension, while the weight of the truck body and gravity handle the retraction. This requires a sophisticated internal bleeding and venting system to prevent air entrapment. Conversely, our double-acting variants utilize fluid pressure for both directions, providing absolute control during complex positioning tasks. The precision of these movements is maintained through ultra-tight machining tolerances that prevent stage binding or erratic jerky motions during high-pressure lifting.

Durability begins with metallurgy. Our cylinders are forged from high-tensile 27SiMn seamless steel tubes, which offer a superior strength-to-weight ratio compared to standard carbon steels. Every sleeve undergoes a meticulous induction hardening process followed by high-micron hard chrome plating (typically 25-30 microns). This micro-crack chrome layer acts as a reservoir for hydraulic oil, reducing friction while providing an impervious barrier against corrosion. Our sealing systems feature high-performance polyurethane and PTFE guide rings, ensuring zero leakage even at pressure spikes exceeding 250 Bar. When you buy telescopic cylinder products from us, you are investing in a system designed for a lifecycle of over 200,000 cycles.

Technical Benchmarks

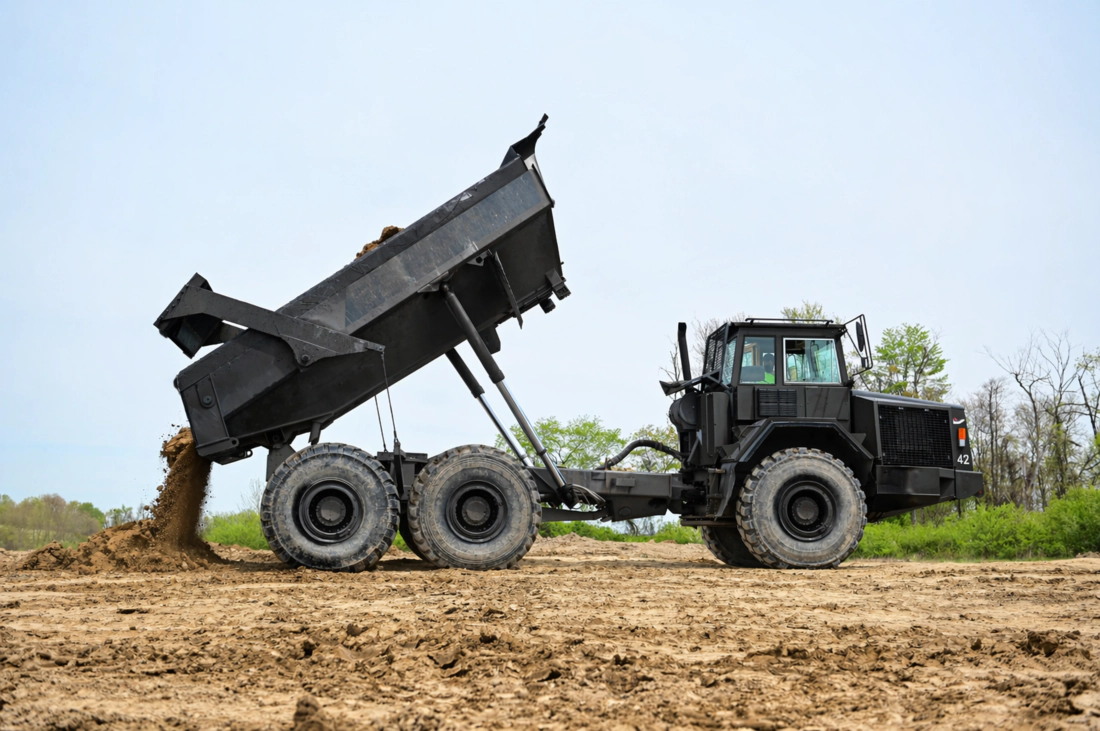

Mining & Heavy Construction

In open-pit mining, the dump truck telescopic cylinder is the lifeline of the operation. Our cylinders are engineered to handle the extreme side-loading forces encountered during tipping on uneven terrain. The enhanced rod rigidity prevents catastrophic buckling, ensuring safety in 100-ton load cycles.

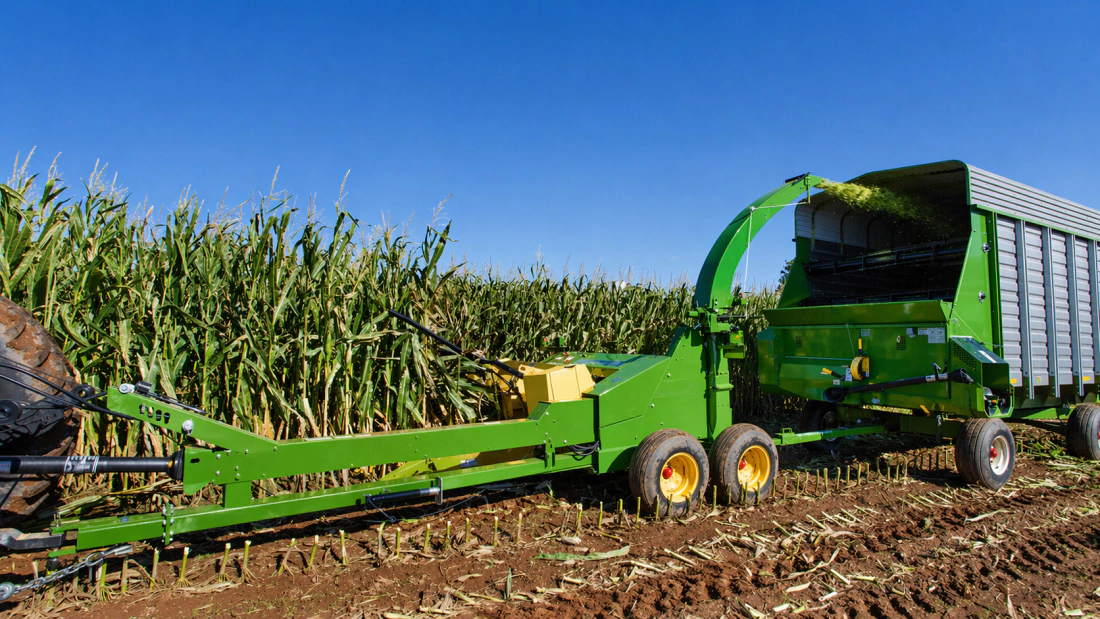

Precision Agriculture

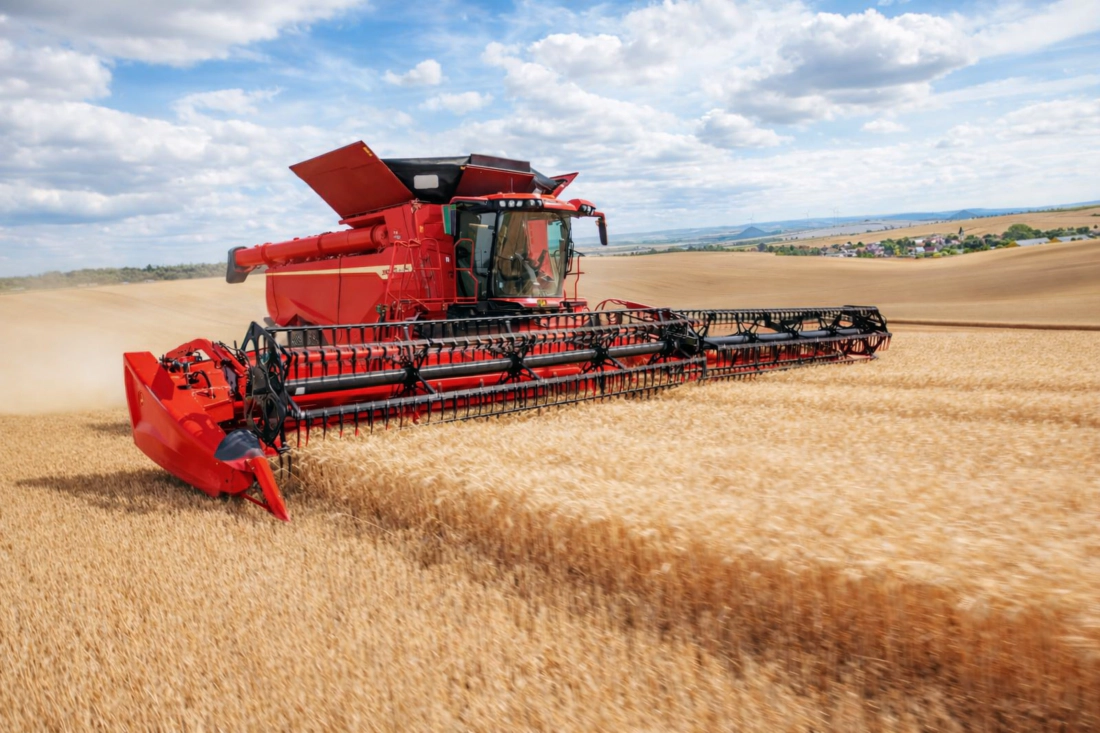

From grain carts to combine harvester machinery, we provide compact multi-stage actuators that fit within restricted chassis spaces. Our agricultural cylinders are designed with specialized anti-corrosion coatings to resist fertilizers and organic acids found in the field.

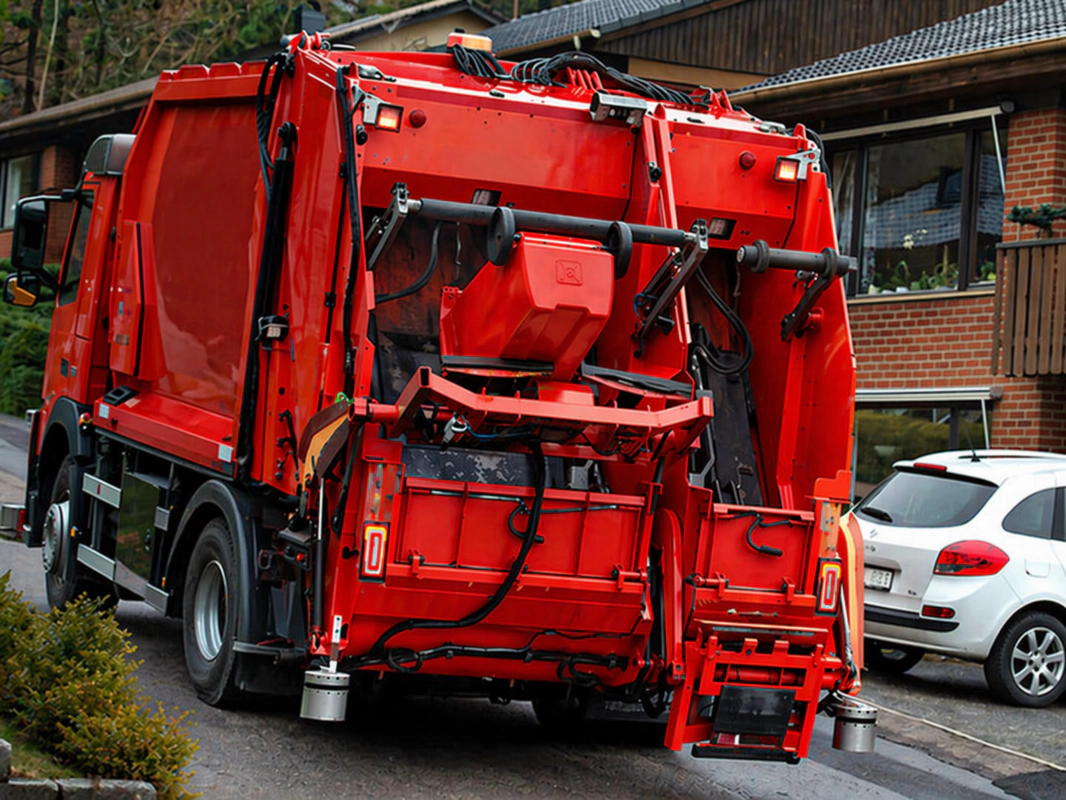

Waste & Logistics

Refuse collection vehicles demand high cycle rates. Our cylinders feature internal damping systems that reduce impact noise and vibration, extending the life of the vehicle body and the hydraulic pump.

Excellence from China's Industrial Hub

As a premier hydraulic cylinder supplier China, we bridge the gap between large-scale manufacturing and bespoke engineering. Our facility in China is equipped with multi-axis CNC centers and automated robotic welding cells, ensuring every custom telescopic cylinder stroke design is executed with mathematical precision. We don't just manufacture; we engineer solutions. Whether you require integrated position sensors, specialized mounting trunnions, or non-standard fluid ports, our team provides full 3D CAD modeling and FEA simulation before a single piece of steel is cut. This custom hydraulic ram manufacturer capability allows us to support OEMs worldwide with tailored actuators that integrate seamlessly into their unique machine designs.

Project: Iron Ore Haulage Fleet Upgrade

In 2023, a major mining consortium in Brazil approached us to solve a recurring failure in their 50-ton tipper fleet. Their existing cylinders were suffering from "stage sagging" and seal blowouts due to the high-ambient heat and abrasive red iron dust.

The Solution:

We developed a custom 4-stage telescopic cylinder using high-temp Viton seals and a triple-layer chrome coating. We also integrated a customized hydraulic cushion to decelerate the stages during the final 5% of extension, reducing structural stress.

The Result:

The client reported a 35% reduction in unplanned maintenance and extended their service intervals from 1,500 to 4,000 hours. The total cost of ownership dropped by 22% over the first year of operation.

Global Testimonials

"Ever Power's multi-stage actuators have transformed our harvester performance. The customization process was flawless."

— Sergey V., Ag-Machinery OEM (Russia)

"As a supplier in China, their quality rivals European standards at a much more competitive price point."

— Julian M., Fleet Manager (Australia)

"Fast shipping and impeccable technical support. They understood our heavy-duty hydraulic lifting system requirements perfectly."

— Carlos R., Engineering Director (Brazil)
