ProductSnow Plow Hydraulic Cylinders WP-2100PSI: Cold-Weather OEM Replacement Actuation

Replacement snow plow hydraulic cylinders engineered to match legacy ARCTIC, FISHER, MEYER, and WESTERN OEM patterns — sealed for −30°C service.

ARCTIC · FISHER · MEYER · WESTERN Patterns  |  Bore 1.75" to 2.25"

The snow plow hydraulic cylinder WP-2100PSI is the winter-service replacement part our North American and Northern European buyers reach for when an ARCTIC, FISHER, MEYER, or WESTERN plow cylinder gives out mid-season. Every snow plow hydraulic cylinder in the WP-2100PSI range is built to match the dimensional and port patterns of the legacy OEMs, so a fleet mechanic can drop the replacement in place without bracket rework or hose-line modification. Bore sizes run from 1.75" to 2.25", stroke lengths match the original OEM spec exactly, and the WP-2100PSI snow plow cylinder carries seal compounds qualified for −30°C to +100°C service.

What makes the EVER POWER snow plow hydraulic cylinder different from the import parts stocked at generic counter stores is the seal temperature window and the chrome quality on the rod. Snow plow service sees road-salt spray, ice abrasion, and repeated extreme-cold startups, and the WP-2100PSI snow plow cylinder is specified to survive those conditions year after year. Our Hangzhou production line has delivered the snow plow hydraulic cylinder into more than thirty export markets, and fleet rebuilders from Minnesota to Moscow rely on the replacement dimensions matching the original equipment pattern within a 1/16" tolerance.

Why Choose EVER POWER WP-2100PSI?

Choosing a snow plow hydraulic cylinder means matching the OEM replacement dimensions exactly, tolerating road-salt corrosion, and surviving cold-start cycling every morning of the plow season. The WP-2100PSI snow plow cylinder has been refined with those three priorities in mind. Here are the six engineering details that keep winter-service fleets specifying the snow plow hydraulic cylinder year after year.

Working Principle & Construction

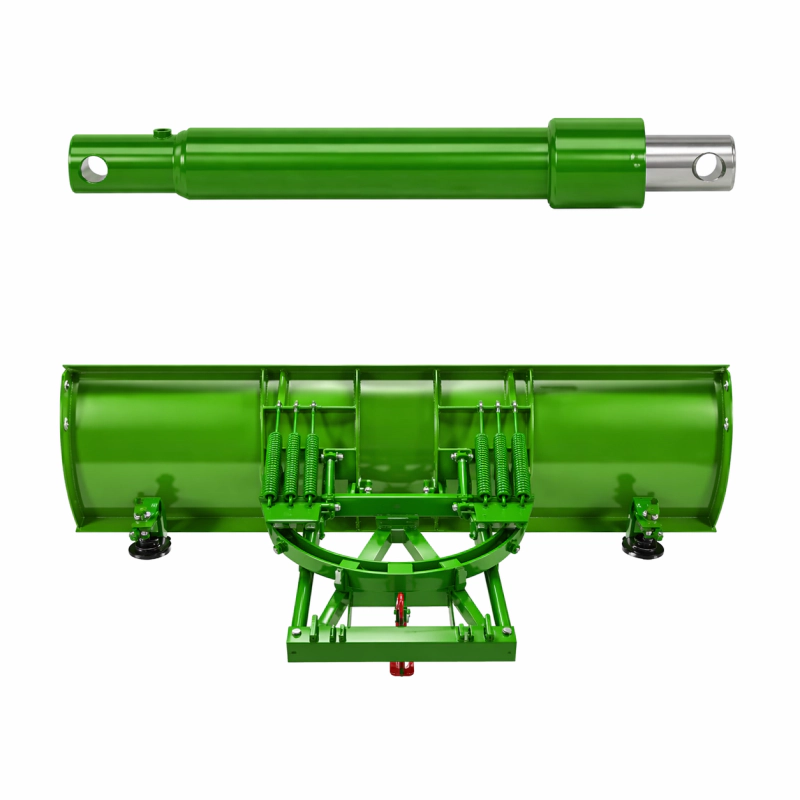

A snow plow hydraulic cylinder is a compact double-acting cylinder whose defining specification is its OEM dimensional match rather than its raw pressure rating. The WP-2100PSI snow plow cylinder operates at a maximum 2500 PSI working pressure (conservatively specified as 2100 PSI in service use), which is consistent with the plow-controller output on legacy truck plow installations. Blade angle changes on an ARCTIC or WESTERN plow are driven by two such cylinders working in opposition — one extends while the other retracts — and both need to match the OEM dimension exactly or the plow-frame geometry binds.

Material selection on every snow plow hydraulic cylinder is tuned for the road-salt and cold-start operating environment. Barrels are cold-drawn seamless carbon steel with an optional zinc-phosphate primer under the black topcoat on cold-climate variants. Rods are induction-hardened and hard chromed, with a minimum 0.03 mm plating thickness verified on every rod before the chrome is polished. The seal stack is biased toward cold-start capability — polyurethane primary rod seal with a Nitrile secondary wiper — and the WP-2100PSI snow plow cylinder is rated for a seal temperature window of −30°C to +100°C as standard. Extreme-cold seal kits rated to −40°C are available for Scandinavian and Northern-Russian operating territories.

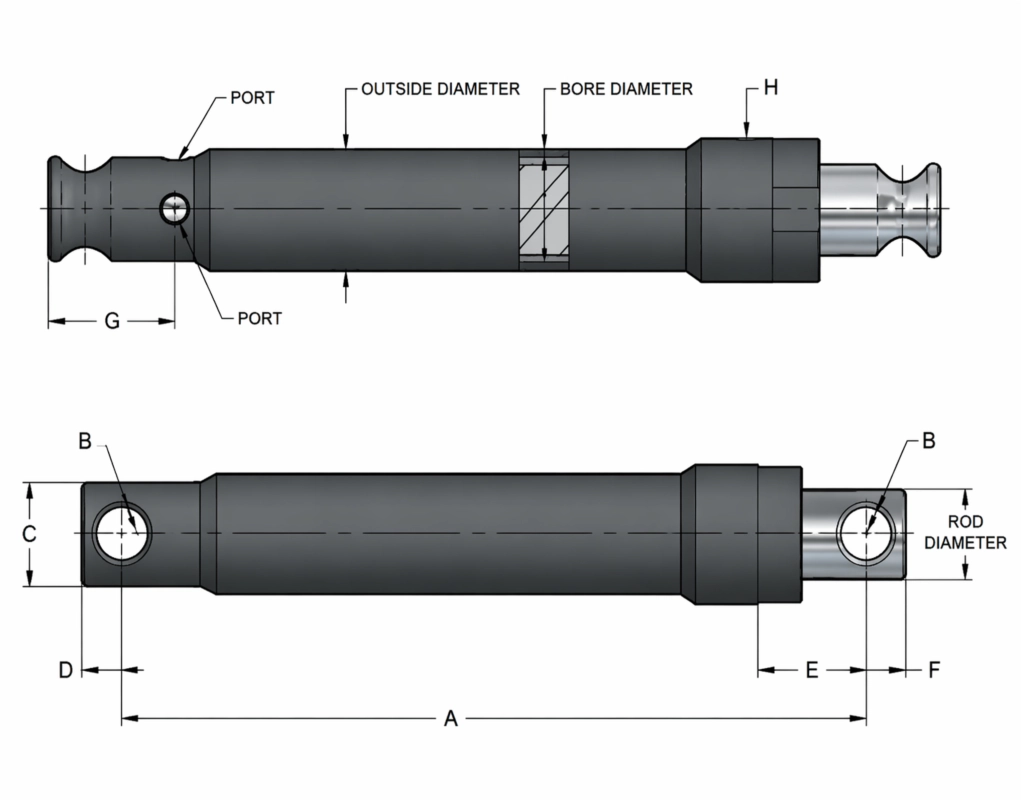

Port configurations on the snow plow hydraulic cylinder follow the OEM convention exactly. Most ARCTIC, FISHER, and WESTERN units use a dual 1/4" NPT port pattern; MEYER units typically use a single 1/4" NPT port; the WP-2100PSI snow plow cylinder part numbers match those conventions directly. Rod and cap-end pin geometry matches the legacy OEM, so pin inventory at the fleet shop does not need to change. Every WP-2100PSI snow plow cylinder leaves Hangzhou with port protection caps installed and is packaged in fumigated wood crates for ocean-freight protection.

Standard Specifications

Seal temperature range −30°C to +100°C standard. Rod seal maximum speed 3 ft/sec. Single-port variants supply both extend and retract functions through the same hose with the plow-frame geometry managing return flow.

Typical Applications of the WP-2100PSI

A snow plow hydraulic cylinder is specified for one job — swinging a plow blade left and right on an active plow rig — but the application environment varies widely across the installed base. The WP-2100PSI range has been installed on municipal-fleet pickups running residential streets in Chicago and Minneapolis, on dedicated plow trucks clearing provincial highways in Quebec, on commercial contractor rigs servicing shopping-center lots across New England, and on rural service trucks covering Scandinavian farm lanes. The snow plow hydraulic cylinder has to survive all of those conditions with identical reliability, and the WP-2100PSI snow plow cylinder meets that bar with seal compounds qualified for the full cold-climate service window.

Customer Case Study

What Our Customers Say

Inside Our Hangzhou Factory

EVER POWER Hydraulic Machinery operates an integrated production facility in Binjiang District of Hangzhou, Zhejiang Province, China. The plant covers hydraulic cylinder design, CNC machining, robotic welding, rod chroming, assembly, and full QC testing under one roof. Our Hangzhou engineering team has been designing the snow plow hydraulic cylinder line since 2002, with current annual capacity of 120,000 cylinders across the full catalog including the WP-2100PSI platform.

Our quality system is ISO 9001:2015 certified. Every snow plow hydraulic cylinder that leaves the production floor has a traceable serial number linked to raw material certificates, weld records, pressure test data, and final dimensional inspection. We hold CE documentation for European export, and routinely supply buyers in the United States, Canada, Australia, Germany, France, Brazil, Mexico, and Southeast Asia. Third-party inspection by SGS, BV, TUV, or the buyer's own engineer is welcome at any stage.

Quality & Testing Program

Every WP-2100PSI undergoes a multi-stage test program before leaving Hangzhou. Raw tubing is checked for OD/ID dimensional tolerance and straightness on receipt. After honing, each barrel is measured for bore finish (target 0.4-0.8 μm Ra) and cylindricity. Chrome-plated rods are measured for plating thickness with an eddy current gauge and inspected for surface pits under 10x magnification. The final assembled snow plow hydraulic cylinder is pneumatically leak-tested at working pressure, and a sampling ratio is hydraulically proof-tested to 1.5x rated pressure.

Our 10-Step Production Flow

Sourcing a WP-2100PSI Directly from Hangzhou, China

Zhejiang Province is a key hub of Chinese hydraulic cylinder manufacturing, and our Hangzhou facility sits at the center of that cluster. We ship directly from Hangzhou, China to Ningbo Port, and from there to any global seaport on weekly sailings. The proximity of our factory to Ningbo Port gives buyers a clean logistics corridor with container loading often inside seven working days of final test sign-off.

Overseas buyers reach our production floor through Ningbo Port for sea freight, or Hangzhou Xiaoshan International Airport for air samples. Any buyer who needs to receive a WP-2100PSI in Shanghai, Guangzhou, Chongqing, or any industrial hub across China can expect inland dispatch within three working days of approval thanks to the Hangzhou-Ningbo freight corridor and Yangtze River Delta logistics network.

Order Terms & Payment

Standard payment terms are 30% TT deposit with balance against copy of bill of lading, or LC at sight for orders above USD 50,000. Trade Assurance orders through Alibaba are accepted up to USD 100,000. We support FOB Ningbo, CIF to most major ports, and DDP for select European and North American destinations. All snow plow hydraulic cylinder shipments leave our Hangzhou plant in fumigated wood crates with port-protection caps on ports and desiccant inside the cylinder bore.
