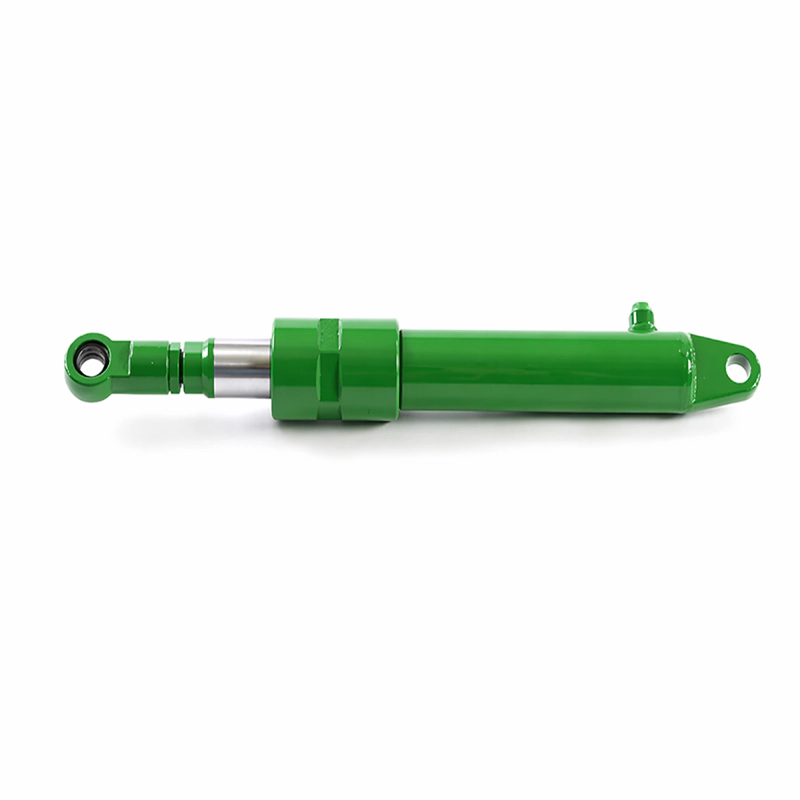

Cutting Table Cylinder for Modern Harvester Hydraulic Systems

Delving into the mechanical heart of the cutting table cylinder reveals a sophisticated interplay of fluid mechanics and advanced metallurgy. The primary function of this harvester hydraulic cylinder is to translate pressurized hydraulic fluid into immense, controlled linear mechanical force. When the combine harvester's onboard pump delivers fluid at pressures exceeding 20 MPa, the fluid enters the cylinder's reinforced rear port, pushing against the precision-machined piston. This action extends the piston rod, which is mechanically linked to the heavy cutting table. The sheer weight of a wide-span header attachment—often exceeding several tons—requires the cylinder to generate massive lifting force without any judder or hesitation. We utilize a highly refined metering groove design on the internal piston, which acts as a hydraulic cushion. This dampens the massive kinetic energy when the heavy cutting table reaches its maximum extension or retraction points, preventing structural shockwaves from tearing through the harvester's chassis. The fluid dynamics within our combine harvester header lift cylinder are meticulously calibrated to ensure smooth, linear motion even when the viscosity of the hydraulic oil changes due to extreme ambient temperature fluctuations during the harvest season.

Material selection dictates the lifespan of any agricultural hydraulic solutions, and our approach is uncompromisingly rigorous. The cylinder barrel is manufactured from seamless, cold-drawn 27SiMn steel, a specialized alloy chosen for its exceptionally high tensile strength and superior resistance to internal pressure expansion. This ensures the barrel maintains perfect cylindrical geometry even under severe pressure spikes caused by the header impacting unexpected obstacles like rocks or hidden stumps. The piston rod, arguably the most vulnerable component of the cutting table cylinder, is forged from high-carbon C45E steel. To combat the highly abrasive environment of a grain harvest—characterized by airborne silica dust, moisture, and corrosive plant saps—the rod undergoes a multi-stage induction hardening process followed by precise hard-chrome plating. This micro-cracked chrome surface not only provides an impenetrable barrier against rust but also optimally retains a microscopic film of lubricating oil, drastically reducing friction against the internal seals. Speaking of seals, we equip every reliable hydraulic cylinder unit with top-tier polyurethane and PTFE composite sealing systems sourced from global leaders. These anti-extrusion seals prevent internal fluid bypass and completely block external contaminants from breaching the hydraulic system, guaranteeing thousands of hours of uninterrupted field operation.

Located at the heart of the world's most advanced industrial manufacturing supply chain, our expansive production facility in China represents the absolute pinnacle of fluid power engineering. As a premier manufacturer of custom agricultural hydraulic cylinders from China, we possess the scale, the technological infrastructure, and the deep engineering expertise required to serve the most demanding global original equipment manufacturers (OEMs). The production of a high-performance cutting table cylinder is a complex symphony of precision mechanics. We do not rely on outsourced machining; our massive factory floor is equipped with rows of multi-axis automated CNC lathes and milling centers. This allows us to maintain microscopic tolerances on internal bore surfaces and rod diameters, ensuring that the critical interface between the metal components and the polyurethane seals is absolutely flawless. By retaining total control over the manufacturing process, we eliminate the dimensional deviations that plague lower-tier suppliers, guaranteeing that every combine harvester header lift cylinder performs exactly to its calculated theoretical parameters.

Our true strength lies in our profound customization capabilities. We understand that standard, off-the-shelf components rarely meet the intense, localized demands of specialized farming operations. Whether you are developing an experimental autonomous grain harvester or retrofitting a legacy fleet of tractors, our dedicated research and development team collaborates directly with your engineers. We can modify the stroke length, alter the mounting configurations, upgrade the seal compounds for extreme arctic or tropical environments, and adjust the bore dimensions to generate precise lifting forces. Every custom prototype undergoes brutal endurance testing on our computerized stress rigs, simulating years of field abuse—including intense side-loading and pressure spikes—in a matter of weeks. This rigorous validation process cements our reputation as a remarkably reliable hydraulic cylinder supplier capable of solving complex mechanical bottlenecks.

What is the exact price for a custom cutting table cylinder replacement from a reliable supplier in China?

The replacement cost for a custom agricultural hydraulic cylinder depends heavily on bore size, stroke length, and the specific high-pressure seal configurations required for your harvester equipment. Because we manufacture everything in-house, we eliminate massive middleman markups. We highly encourage reaching out to our engineering team directly to get a precise, highly competitive quote tailored to your specific mechanical requirements.

How does a heavy-duty combine harvester hydraulic cylinder improve cutting table performance in muddy terrains?

Operating in deep muddy terrain demands rapid, precision micro-adjustments to the header height to prevent the entire machinery from bogging down. Our combine harvester header lift cylinder utilizes ultra-low friction internal bands, zero-leakage directional valves, and aggressive specialized wiper seals that prevent mud intrusion. This ensures smooth, instantaneous lifting force without lag, regardless of severe external fluid contamination.

Where can I find a trusted hydraulic cylinder manufacturer in China providing custom agricultural solutions?

Right here at our advanced engineering hub. We operate a massive, state-of-the-art CNC production facility focused entirely on complex fluid power components. As a deeply experienced and highly reliable hydraulic cylinder supplier in China, we specialize in designing, testing, and delivering heavily customized structural lifting solutions exclusively for the global heavy-duty farm machinery and agricultural equipment networks.

Which advanced materials are used to prevent rust on the harvester cutting table cylinder rod during off-season storage?

During idle off-season periods, heavy humidity and temperature swings cause rapid corrosion on exposed steel. We combat this by utilizing premium high-carbon C45E steel subjected to severe induction hardening, followed immediately by a thick layer of micro-cracked hard chrome plating. This highly dense metallurgical barrier prevents moisture penetration, totally protecting the mechanical rod integrity over extended months of agricultural inactivity.
