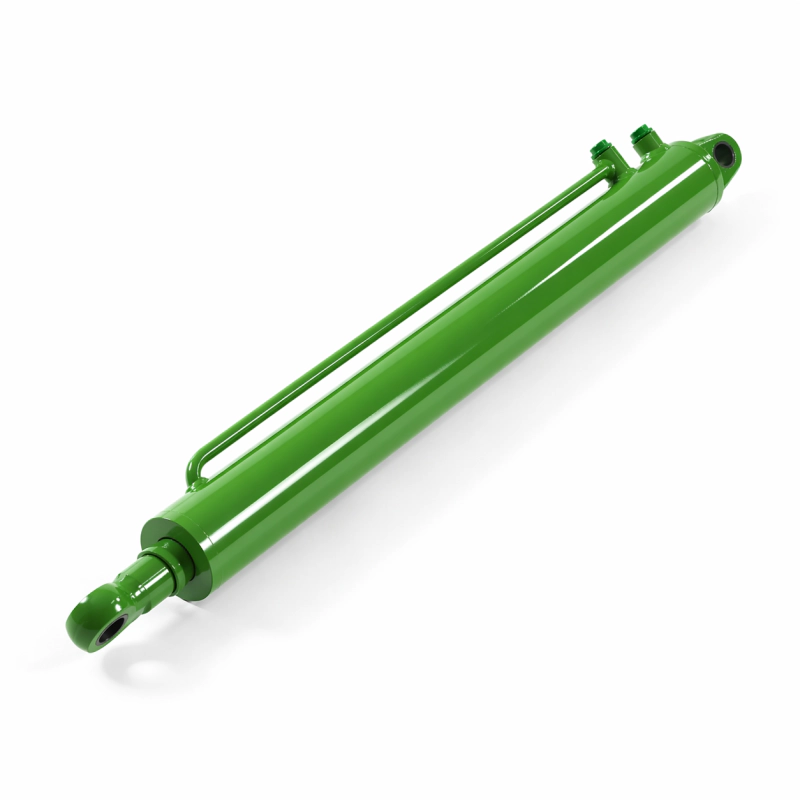

Unloading Hydraulic Cylinder for High-Capacity Harvesters

The operational efficiency of modern, high-capacity grain harvesting operations is fundamentally dictated by the speed, stability, and absolute reliability of the crop transfer process. At the precise mechanical nexus of this critical transfer system is the unloading hydraulic cylinder, a remarkably robust and highly engineered fluid power actuator. This specific component is solely responsible for manipulating the massive unloading auger, extending it outward from the combine harvester's chassis to align perfectly with the receiving grain cart, and subsequently retracting it securely for field navigation. Operating a massive combine harvester at peak intake capacity means the internal grain tank fills incredibly rapidly, often within mere minutes.

Any mechanical hesitation, sluggishness, or catastrophic failure in the unloading hydraulic cylinder causes an immediate logistical bottleneck, forcing the entire million-dollar machine to halt. This halts the entire field operation, wasting precious harvest weather windows and burning excessive diesel fuel while idling. The engineering demands placed upon this specific harvester hydraulic cylinder are extraordinary. It must execute a smooth, perfectly controlled horizontal sweeping motion while handling an auger tube that is frequently loaded with hundreds of pounds of dense, wet grain, acting as a massive lever arm. We have dedicated nearly two decades of intense fluid power research to perfecting the internal valving and structural integrity of these critical cylinders. By integrating sophisticated proportional fluid metering channels, our unloading hydraulic cylinder ensures a beautifully buffered acceleration and deceleration phase, entirely eliminating the violent mechanical jerking that frequently fractures the auger's primary mounting hinge over time.

Experiencing the uncompromising precision manufacturing behind these heavy-duty agricultural components is vital for understanding their exceptional field longevity. We invite you to explore our advanced digital production environment directly from your current location, without the need for international travel. Step onto our factory floor through our immersive virtual reality platform to observe our automated multi-axis CNC machining centers, robotic precision welding lines, and the rigorous hydraulic pressure testing protocols every unit undergoes in real-time. Welcome to visit our VR factory to experience true industrial excellence by clicking here to launch the interactive facility tour. Witnessing our exacting dimensional standards and strict metallurgical quality controls will give you absolute confidence in integrating our engineering solutions into your machinery fleet.

The deployment of our highly engineered unloading hydraulic cylinder spans across fundamentally diverse and intensely grueling agricultural ecosystems globally. Consider the heavy, high-yield corn and maize harvesting operations concentrated in the American Midwest. In these environments, custom harvesting contractors operate massive Class 9 and Class 10 combine harvesters equipped with immense grain tanks. When unloading on the go—transferring grain to a tractor-pulled cart while actively continuing to harvest—the auger must be deployed rapidly while the machine is navigating uneven, heavily rutted terrain. The harvester auger hydraulic cylinder must absorb violent chassis vibrations while maintaining the heavy, grain-filled auger in a perfectly rigid, extended position. Any structural weakness would cause the auger to bounce erratically, missing the grain cart and spilling thousands of dollars of crop onto the ground. Our deep-case hardened trunnion mounts and ultra-rigid rod construction ensure the auger remains locked in its trajectory, completely unaffected by the violent bouncing of the harvester chassis.

Contrasting sharply with the Midwest are the vast, arid wheat belts of the Australian Outback. Here, the sheer scale of the operations and the extreme environmental hostility present entirely different mechanical challenges. Combine harvesters in these regions run continuously for 24 hours a day in ambient temperatures frequently exceeding 40°C, operating in a perpetual cloud of microscopic, highly abrasive silica dust. A standard combine grain tank unloading cylinder will suffer rapid thermal degradation of its seals, while the dust will score the chrome rod within a single week of continuous operation. Our advanced fluid power systems are equipped with high-temperature fluorocarbon (FKM) seals capable of sustaining extreme heat without losing their elastomeric properties. Combined with our micro-cracked chrome plating and aggressive metallic rod scrapers, our cylinders easily shrug off the abrasive outback dust, allowing operators to execute thousands of flawless unloading cycles throughout the brutal harvest season without a single moment of maintenance downtime.

Case Study: Eradicating Unloading Bottlenecks in Saskatchewan, Canada

"AgriYield Logistics," a massive agricultural contracting firm operating across the vast plains of Saskatchewan, manages a modern fleet of over 60 high-capacity combine harvesters specifically targeting dense canola and wheat crops. During their critically short autumn harvest window, their operational efficiency plummeted due to a recurring, systemic failure in their fleet's OEM unloading actuators. The dense canola, combined with sub-zero morning temperatures, created immense hydraulic drag. The original factory cylinders struggled to push the heavily loaded augers outward, deploying sluggishly and frequently suffering blown seals at the base port due to intense pressure spikes. Furthermore, the lack of hydraulic cushioning meant the massive augers were violently slamming into their extended locking positions, causing severe micro-fractures in the harvesters' main chassis hinge points. This resulted in catastrophic downtime as welders had to be dispatched to the fields to repair the structural damage.

Recognizing the critical nature of this mechanical failure, our global engineering team collaborated directly with AgriYield's maintenance directors to engineer a heavy-duty custom unloading auger cylinder replacement. We completely redesigned the internal fluid dynamics, expanding the port sizes by 25% to allow rapid oil displacement even when the fluid was cold and highly viscous. We integrated heavy-duty low-temperature seals capable of flexing perfectly at -20°C, and incorporated our proprietary dual-stage hydraulic cushioning to silently catch and decelerate the heavy auger arm at the end of its stroke. Upon retrofitting their entire fleet, the results were extraordinary. Auger deployment time was reduced by 30%, completely eliminating the grain cart waiting bottlenecks. Zero chassis fractures were recorded for the remainder of the season, and the cooperative calculated a massive savings in diesel fuel simply by eliminating the idle waiting time previously caused by the sluggish factory cylinders.

Ready to Eliminate Harvesting Bottlenecks?

Connect directly with our senior fluid power engineering team today to discuss bespoke cylinder dimensions, rigorous environmental application requirements, and bulk OEM pricing integration for your heavy-duty agricultural fleet.
